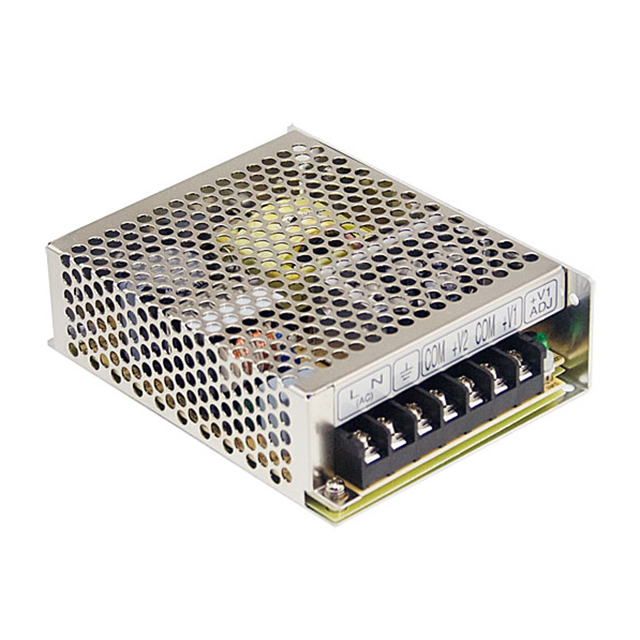

RD-65A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 66W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 66W

Technical Specifications

Parameters and characteristics for this part

Specification	RD-65A

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	6 A
Current - Output 2	3 A
Efficiency	79 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	66 W
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Number of Outputs	Features	Voltage - Isolation	Voltage - Output 1	Voltage - Output 2	Efficiency	Approval Agency	Type	Current - Output 1	Applications	Minimum Load Required
MEAN WELL USA Inc. RD-65A	88 VAC 125 VDC	264 VAC 373 VDC	Chassis Mount	66 W	-25 °C	70 °C	3 A	2	Adjustable Output Universal Input	3000 V	5 V	12 V	79 %	CB CE cURus TUV	Enclosed	6 A	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 5V 12V 88 ~ 264 VAC, 125 ~ 373 VDC Input
