338-022-541-102

Active

EDAC Inc.

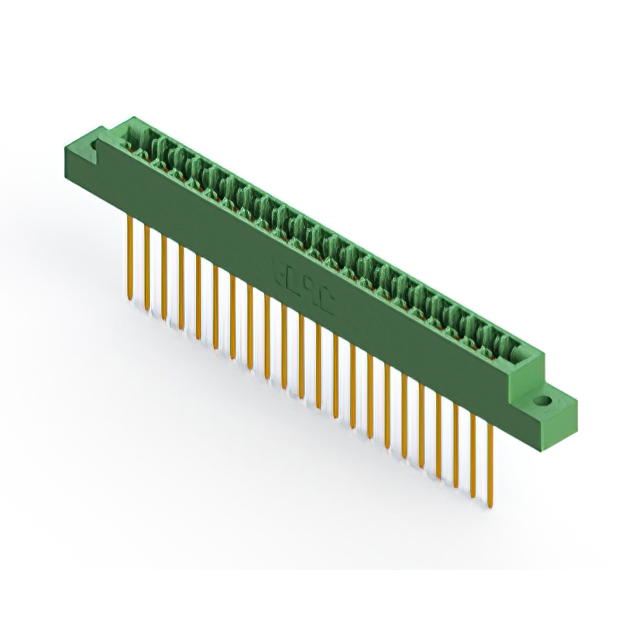

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

338-022-541-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	338-022-541-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	2

338-022 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Features	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Termination Rows	Color	Read Out	Number of Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Finish	Termination	Flange Feature	Gender	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 338-022-541-178	10 Áin	0.25 Ám	Copper Alloy	Card Guides	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-107	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-102	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)	3.25 mm	0.128 "
EDAC Inc. 338-022-541-108	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-103	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	Floating Bobbin Flush Mount	Female	Diallyl Phthalate (DAP)	2.95 mm	0.116 in
EDAC Inc. 338-022-541-168	10 Áin	0.25 Ám	Copper Alloy	Card Guides	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-158	10 Áin	0.25 Ám	Copper Alloy	Card Guides	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-101	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap		Female	Diallyl Phthalate (DAP)
EDAC Inc. 338-022-541-104	10 Áin	0.25 Ám	Copper Alloy		22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Green	Single	1	22	0.156 in	3.96 mm	Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	Wire Wrap	Flush Mount Top Opening Unthreaded	Female	Diallyl Phthalate (DAP)	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 37.91
Newark	Each	1	$ 56.93
		100	$ 49.82
		250	$ 44.29
		500	$ 39.86
		1000	$ 30.44

Description

General part information

338-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
