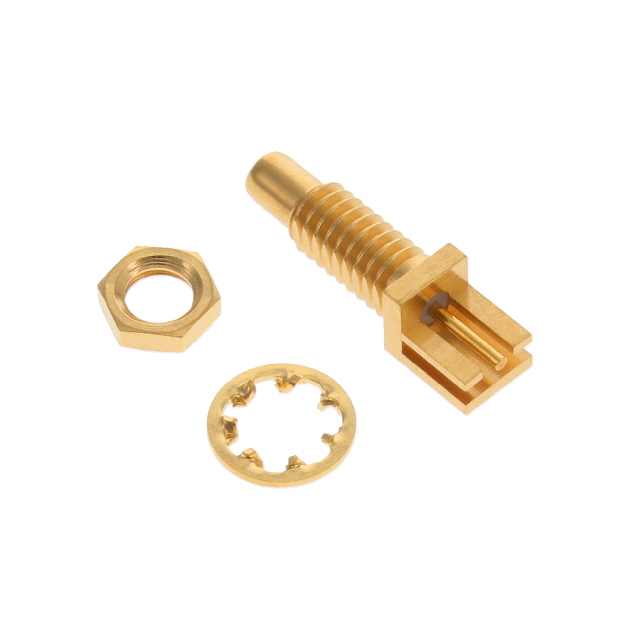

Specification	7029-1513-004

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Lockwasher, Nut, Connector
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Board Edge, End Launch, Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	250 V

7029-1513 Series

Part	Dielectric Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Includes Total Count	Includes	Voltage Rating	Center Contact Plating	Body Material	Mounting Type	Frequency - Max	Fastening Type	Shield Termination	Contact Termination	Mounting Feature	Center Contact Material	Housing Color	Number of Ports	Connector Type	Impedance	Connector Style
Radiall USA, Inc. 7029-1513-004	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Gold	3 pcs	Connector Lockwasher Nut	250 V	Gold	Stainless Steel	Board Edge End Launch Panel Mount	12.4 GHz	Snap-On	Solder	Solder	Bulkhead Front Side Nut	Beryllium Copper	Gold	1	Jack Male Pin	50 Ohm	SSMC
Radiall USA, Inc. 7029-1513-005	Polytetrafluoroethylene (PTFE)	500 cycles	-65 °C	165 °C	Gold	3 pcs	Connector Lockwasher Nut	250 V	Gold	Stainless Steel	Board Edge End Launch Panel Mount	12.4 GHz	Snap-On	Solder	Solder	Bulkhead Front Side Nut	Beryllium Copper	Gold	1	Jack Male Pin	50 Ohm	SSMC
