NOIX1SN012KB-LTI

Active

ON Semiconductor

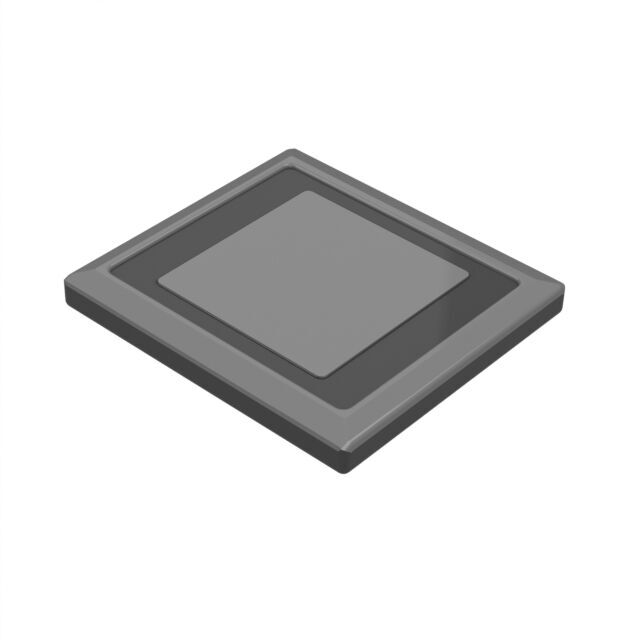

CMOS IMAGE SENSOR 4096 X 3072PIXELS 1 INCH FORMAT 163-PIN CLGA

Search across all available documentation for this part.

Active

ON Semiconductor

CMOS IMAGE SENSOR 4096 X 3072PIXELS 1 INCH FORMAT 163-PIN CLGA

Technical Specifications

Parameters and characteristics commom to parts in this series

CMOS Image Sensor, 9.4 MP, Global Shutter

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Pixel Size [y]	Pixel Size [x]	Frames per Second	Operating Temperature [Min]	Operating Temperature [Max]	Type	Active Pixel Array [x]	Active Pixel Array [y]
ON Semiconductor NOIX1SE9400B-LTI1	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	3072	3072
ON Semiconductor NOIX1SN012KB-LTI1	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	4096	3072
ON Semiconductor NOIX1SE9400B-LTI	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	3072	3072
ON Semiconductor NOIX1SE012KB-LTI	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	4096	3072
ON Semiconductor NOIX1SN9400B-LTI1	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	3072	3072
ON Semiconductor NOIX1SE8000B-LTI	1.9 V, 2.9 V	1.7 V, 2.7 V	3.2 µm	3.2 µm	128	-40 °C	85 °C	CMOS	4096	2160
ON Semiconductor NOIX1SN012KB-LTI	1.3 V	1.1 V	3.2 µm	3.2 µm	90	-40 °C	85 °C	CMOS	4096	3072

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 441.18
Newark	Each	25	$ 462.36

General part information

CMOS Image Sensor, 9.4 MP, Global Shutter
