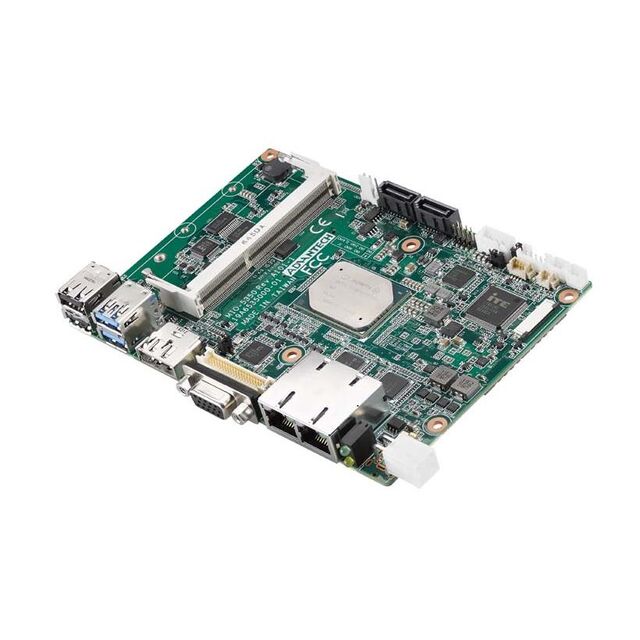

MIO-5350N-S2A1E

Active

Advantech Corp

SBC 1.1GHZ 4 CORE 8GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MIO-5350N-S2A1E

Active

Advantech Corp

SBC 1.1GHZ 4 CORE 8GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIO-5350N-S2A1E

Cooling Type	Fan
Core Processor	Intel Pentium N4200
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	MIOe, mPCIe
Form Factor	SO-DIMM
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	4.8 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	4
Size / Dimension [x]	146.05 mm
Size / Dimension [x]	5.75 in
Size / Dimension [y]	4.02 in
Size / Dimension [y]	102.1 mm
Speed	1.1 GHz
Storage Interface	mSATA, SATA
USB	2, 2
Video Outputs	VGA, HDMI
Watchdog Timer	True

MIO-5350 Series

Part	Cooling Type	USB	Video Outputs	Ethernet	Storage Interface	Speed	Form Factor	RS-232 (422, 485)	RAM Capacity/Installed [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores	Core Processor	Expansion Site/Bus	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Digital I/O Lines	Size / Dimension	Size / Dimension	Form Factor	Ethernet
Advantech Corp MIO-5350N-S2A1E	Fan	2 2	HDMI VGA	10 Mbps 100 Mbps 1000 Mbps	mSATA SATA	1.1 GHz	SO-DIMM	4	8 GB	4.02 in	102.1 mm	146.05 mm	5.75 in	4	Intel Pentium N4200	MIOe mPCIe	60 °C	0 °C	4.8 W	8
Advantech Corp MIO-5350EW-S7A2	Fan	2 2	eDP HDMI LVDS	10 Mbps 100 Mbps 1000 Mbps	mSATA SATA 2.0	1.6 GHz		2	8 GB	4.02 in			5.75 in	4	Intel Atom E3950	GPIO I2C LVDS M.2 mPCIe mSATA SATA SMBus SPI	85 °C	-40 °C			146 mm	102 mm	3.5 in	GbE (2) RJ45 (2)
Advantech Corp MIO-5350EW-S3A2	Fan	2 2	eDP HDMI LVDS	10 Mbps 100 Mbps 1000 Mbps	mSATA SATA 2.0	1.3 GHz		2	8 GB	4.02 in			5.75 in	2	Intel Atom E3930	GPIO I2C LVDS M.2 mPCIe mSATA SATA SMBus SPI	85 °C	-40 °C			146 mm	102 mm	3.5 in	GbE (2) RJ45 (2)
Advantech Corp MIO-5350N-S2A2	Fan	2 2	eDP HDMI LVDS	10 Mbps 100 Mbps 1000 Mbps	mSATA SATA 2.0	1.1 GHz		2	8 GB	4.02 in			5.75 in	4	Intel Pentium N4200	GPIO I2C LVDS M.2 mPCIe mSATA SATA SMBus SPI	60 °C	0 °C	4.8 W		146 mm	102 mm	3.5 in	GbE (2) RJ45 (2)
Advantech Corp MIO-5350N-S1A2	Fan	2 2	eDP HDMI LVDS	10 Mbps 100 Mbps 1000 Mbps	mSATA SATA 2.0			2	8 GB	4.02 in			5.75 in	2	Intel Celeron N3350	GPIO I2C LVDS M.2 mPCIe mSATA SATA SMBus SPI	60 °C	0 °C	4.8 W		146 mm	102 mm	3.5 in	GbE (2) RJ45 (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MIO-5350 Series

Single Board Computer 1.1GHz 4 Core 8GB/0GB RAM Intel Pentium N4200

Documents

Technical documentation and resources
