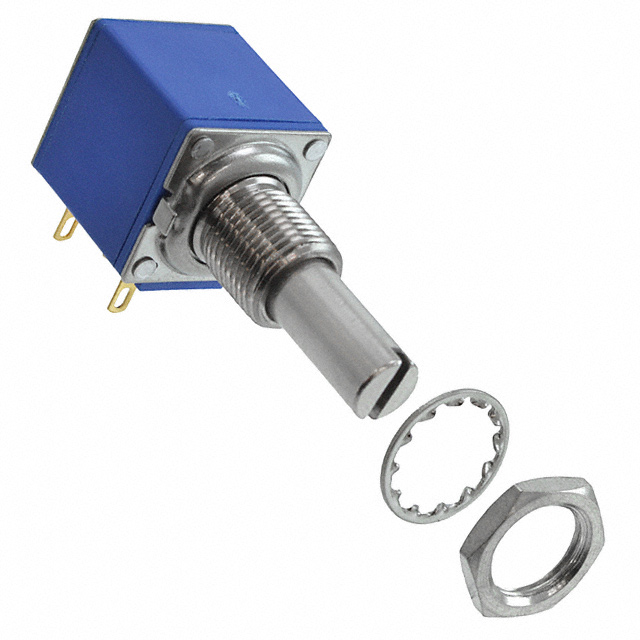

84A1D-B28-J15L

Active

Bourns Inc.

RES,WIREWOUND,10KOHMS,5+/-% TOL,7563-CASE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

RES,WIREWOUND,10KOHMS,5+/-% TOL,7563-CASE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Resistive Material	Actuator Diameter	Actuator Diameter [diameter]	Number of Turns	Termination Style	Taper	Rotation	Temperature Coefficient	Tolerance	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Actuator Length [z]	Actuator Length [z]	Number of Gangs	Power (Watts)	Adjustment Type	Bushing Thread	Resistance (Ohms)	Actuator Type	Resistance (Ohms)
Bourns Inc. 84A1D-B24-J15L	Wirewound	6.35 mm	0.25 in	10	Solder Lug	Linear	3600 °	50 ppm/°C	5 %	0.625 in	15.88 mm	15.88 mm	0.625 in	19.05 mm	0.75 in	1	1 W	User Defined	3/8-32	10k	Slotted
Bourns Inc. 84A1D-B28-J15L	Wirewound	6.35 mm	0.25 in	10	Solder Lug	Linear	3600 °	50 ppm/°C	5 %	0.625 in	15.88 mm	15.88 mm	0.625 in	22.23 mm	0.875 in	1	1 W	User Defined	3/8-32	10k	Slotted
Bourns Inc. 84A1D-B28-J10L	Wirewound	6.35 mm	0.25 in	10	Solder Lug	Linear	3600 °	50 ppm/°C	5 %	0.625 in	15.88 mm	15.88 mm	0.625 in	22.23 mm	0.875 in	1	1 W	User Defined	3/8-32		Slotted	1 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 35.27
Newark	Each	250	$ 32.68

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 1W Solder Lug
