887-021-540-103

Active

EDAC Inc.

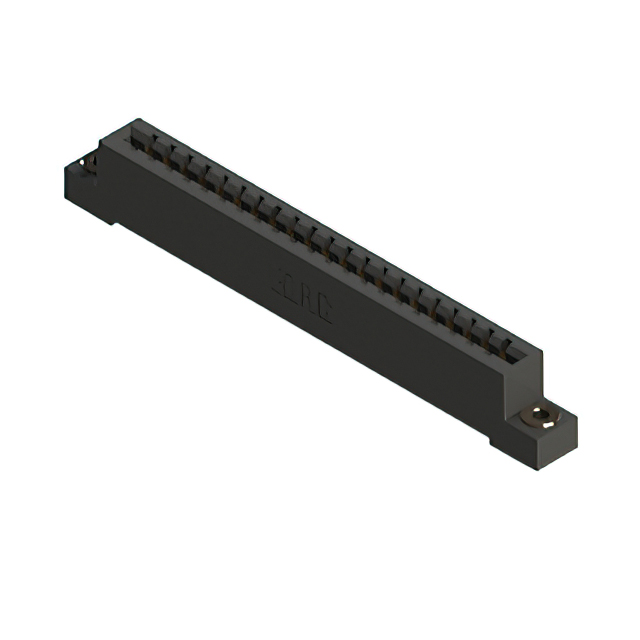

CONN EDGE SGL FMALE 21POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-021-540-103

Active

EDAC Inc.

CONN EDGE SGL FMALE 21POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-021-540-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

887-021 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Number of Positions	Read Out	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows	Termination Rows	Material - Insulation	Card Type	Flange Feature	Flange Feature
EDAC Inc. 887-021-540-603	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-541-604	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-540-604	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-541-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever				Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-520-602	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Solder	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever				Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	3.25 mm	0.128 in
EDAC Inc. 887-021-523-607	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Solder	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever		M3 Threaded Insert Top Mount Opening		Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-524-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Solder	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-541-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-540-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Wire Wrap	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge
EDAC Inc. 887-021-520-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Solder	0.156 in	3.96 mm	125 °C	-40 °C	Copper Alloy	Cantilever	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	21	Single	Through Hole	10 Áin	0.25 Ám	Female	1	1	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 51.71
Newark	Each	1	$ 62.05
		100	$ 39.27
		250	$ 34.91
		500	$ 32.59
		1000	$ 27.13

Description

General part information

887-021 Series

21 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
