XM2F-0940-112L

Obsolete

Omron Electronics Inc-EMC Div

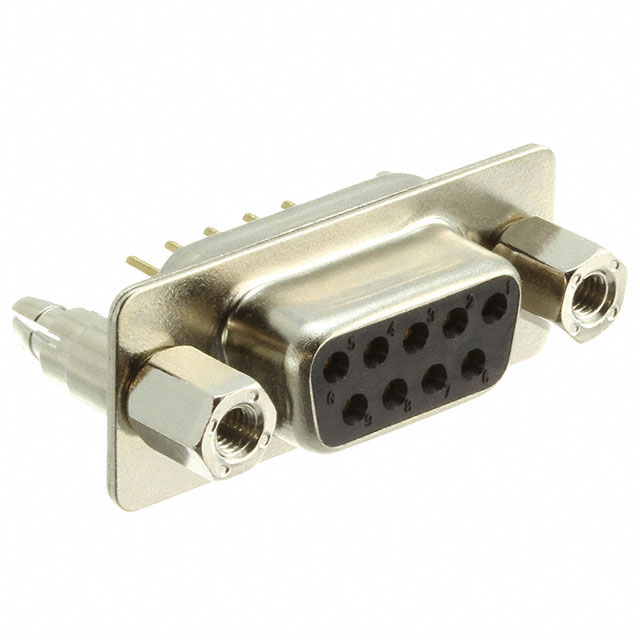

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 9POS VERT SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XM2F-0940-112L	XM2F Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	-	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	9	9 - 15
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

CONN D-SUB RCPT 9POS VERT SLDR

Part	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Voltage Rating	Color	Features	Current Rating (Amps)	Termination	Contact Type	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Finish	Shell Material, Finish	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Contact Material	Shell Size, Connector Layout	Flange Feature
Omron Electronics Inc-EMC Div XM2F-0940-112L	Flash	Through Hole	UL94 V-0	300 VDC	Black	Board Lock, Shielded	3 A	Solder	Signal	9	DE, E	1	Polybutylene Terephthalate (PBT), Glass Filled	Gold	Nickel Plated, Steel	2	-25 °C	105 ░C	Receptacle, Female Sockets	D-Sub	Phosphor Bronze
Omron Electronics Inc-EMC Div XM2F-1540-132L	Flash	Through Hole	UL94 V-0	300 VDC	Black	Board Lock, Shielded	3 A	Solder	Signal	15			Polybutylene Terephthalate (PBT), Glass Filled	Gold	Nickel Plated, Steel	2	-25 °C	105 ░C	Receptacle, Female Sockets	D-Sub	Phosphor Bronze	2	Female Screwlock (4-40), Mating Side
