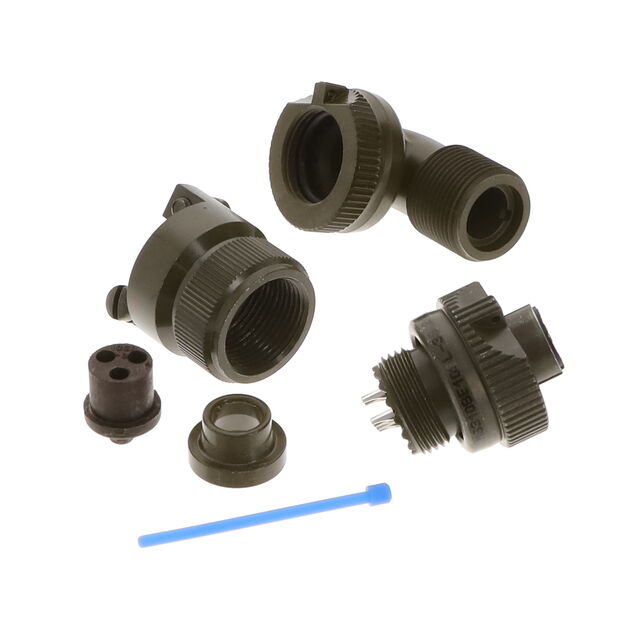

MS3108E10SL-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E10SL-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E10SL-3S | MS3108E10 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening | - | 7.14 mm |
| Cable Opening | - | 0.281 in |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 13 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | - | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-5015 | MIL-5015, MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 | 10SL-3 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.28 | |
| 10 | $ 40.63 | |||
| 25 | $ 39.07 | |||
| 50 | $ 37.77 | |||
| 100 | $ 35.69 | |||
| 250 | $ 34.64 | |||
MS3108E10 Series
PLUG
| Part | Primary Material | Mounting Type | Contact Finish - Mating | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Ingress Protection | Connector Type | Features | Color | Shell Size - Insert | Qualification | Shell Finish | Applications | Shielding | Contact Material | Shell Material | Current Rating (Amps) | Grade | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E10S-2P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108E10SL-3S | Metal | Free Hanging (In-Line), Right Angle | Silver | Neoprene | -55 °C | 125 °C | N | Environment Resistant | Female Sockets, Plug | Cable Clamp, Coupling Nut | Olive Drab | 10SL-3 | MIL-5015 | Olive Drab Chromate over Cadmium | Marine, Military | Unshielded | Copper Alloy | Aluminum Alloy | ||||
Amphenol Industrial Operations MS3108E10SL-3P | Metal | Free Hanging (In-Line), Right Angle | Silver | Neoprene | -55 °C | 125 °C | N | Environment Resistant | Male Pins, Plug | Cable Clamp, Coupling Nut | Olive Drab | 10SL-3 | MIL-DTL-5015 | Olive Drab Chromate over Cadmium | Marine, Military | Unshielded | Copper Alloy | Aluminum Alloy | 13 A | Military | 7.14 mm | 0.281 in |
Description
General part information
MS3108E10 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
