83317E 0091000

Active

Belden Inc.

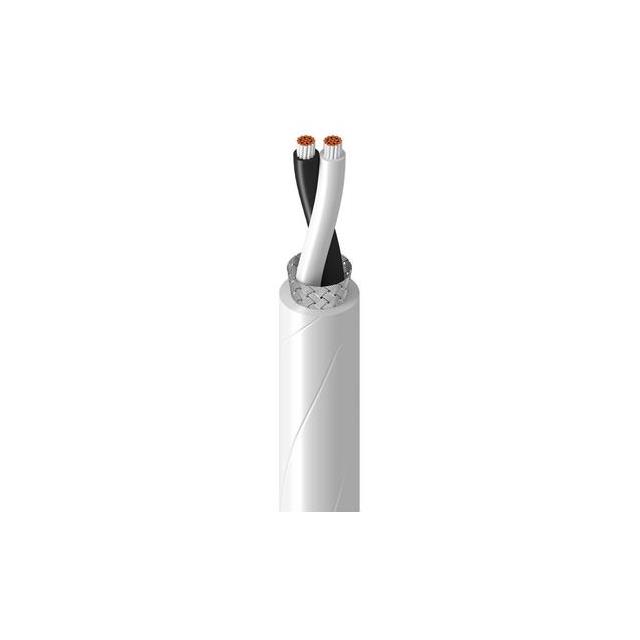

CABLE 2COND 26AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 26AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83317E 0091000

Cable Type	Multi-Conductor
Conductor Insulation	Tetrafluoroethylene (TFE)
Conductor Material	Copper, Silver Coated
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	3.07 mm
Jacket (Insulation) Diameter [diameter]	0.121 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.279 mm
Jacket (Insulation) Thickness	0.011 in
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-W-16878/4 Type E
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	26 AWG

Part	Cable Type	Qualification	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Wire Gauge	Voltage	Shield Material	Conductor Material	Shield Coverage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Length	Length	Length [x]	Length [x]
Belden Inc. 83317E 0091000	Multi-Conductor	MIL-W-16878/4 Type E	Tetrafluoroethylene (TFE)	0.279 mm	0.011 in	7 Strands 34 AWG	26 AWG	600 V	Copper Silver Coated	Copper Silver Coated	85 %	Braid	3.07 mm	0.121 in	Tetrafluoroethylene (TFE)	-65 ░C	200 °C	2	1000 ft	304.8 m
Belden Inc. 83317E 009100	Multi-Conductor		Tetrafluoroethylene (TFE)	0.279 mm	0.011 in	7 Strands 34 AWG	26 AWG		Copper Silver Coated	Copper Silver Coated	85 %	Braid	3.07 mm	0.121 in	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	2			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.59

General part information

2 (1 Pair) Conductor Multi-Conductor Cable White 26 AWG Braid 1000.0' (304.8m)
