Programmable LCD Timing module:Multiple LCD timing sources availableUp to 4 commons: Static, 1/2, 1/3 or 1/4 multiplexStatic, 1/2 or 1/3 bias configuration

Technical Specifications

Parameters and characteristics for this part

Specification	PIC18F8490T-I/PT

A/D Channels	12 count
A/D Resolution (bits)	10 bit
Connectivity	USART, UART, SPI, I2C
Core Processor	PIC
Core Size (Bit Width)	8 Bit
Mounting Type	Surface Mount
Number of I/O	66
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	80-TQFP
Package Length	12 mm
Package Name	80-TQFP
Package Width	12 mm
Peripherals	HLVD, POR, PWM, LCD, WDT, Brown-out Detect, Reset
Program Memory Depth	8 K
Program Memory Size	16 KB
Program Memory Type	FLASH
Program Memory Width	16
RAM Size Depth	768
RAM Size Width	8 bit
Speed	40 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	4.2 V

PIC18F8490 Series

Part	Oscillator Type	Core Processor	Peripherals	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	A/D Channels	A/D Resolution (bits)	Number of I/O	Program Memory Depth	Program Memory Size	Program Memory Width	Package Width	Package Name	Package Length	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Speed	RAM Size Width	RAM Size Depth	Program Memory Type	Core Size (Bit Width)	Connectivity	Package / Case
Microchip Technology PIC18F8490-I/PT	Internal	PIC	Brown-out Detect HLVD LCD POR PWM Reset WDT	85 °C	-40 °C	Surface Mount	12 count	10 bit	66	8 K	16 KB	16	12 mm	80-TQFP	12 mm	4.2 V	5.5 V	40 MHz	8 bit	768	FLASH	8 Bit	I2C SPI UART USART	80-TQFP

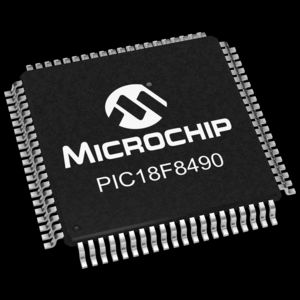

Microchip Technology PIC18F8490-E/PT	Internal	PIC	Brown-out Detect HLVD LCD POR PWM Reset WDT	125 °C	-40 °C	Surface Mount	12 count	10 bit	66	8 K	16 KB	16	12 mm	80-TQFP	12 mm	4.2 V	5.5 V	40 MHz	8 bit	768	FLASH	8 Bit	I2C SPI UART USART	80-TQFP
Microchip Technology PIC18F8490T-I/PT	Internal	PIC	Brown-out Detect HLVD LCD POR PWM Reset WDT	85 °C	-40 °C	Surface Mount	12 count	10 bit	66	8 K	16 KB	16	12 mm	80-TQFP	12 mm	4.2 V	5.5 V	40 MHz	8 bit	768	FLASH	8 Bit	I2C SPI UART USART	80-TQFP
Microchip Technology PIC18LF8490-I/PT	Internal	PIC	Brown-out Detect HLVD LCD POR PWM Reset WDT	85 °C	-40 °C	Surface Mount	12 count	10 bit	66	8 K	16 KB	16	12 mm	80-TQFP	12 mm	2 V	5.5 V	40 MHz	8 bit	768	FLASH	8 Bit	I2C SPI UART USART	80-TQFP
