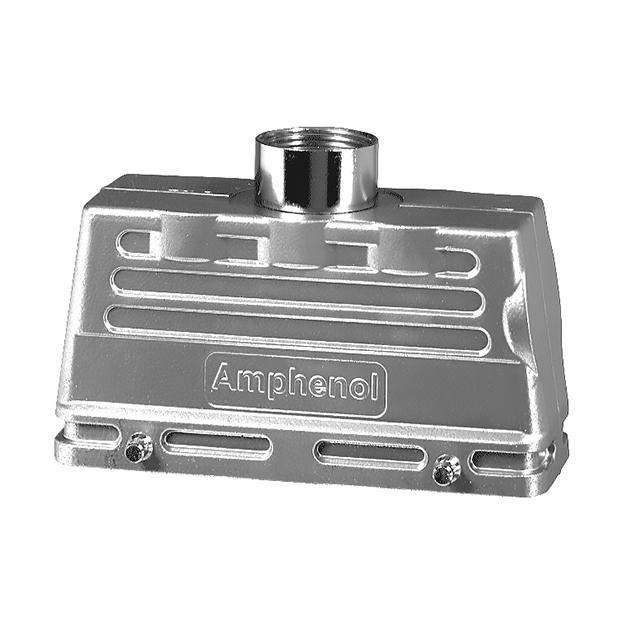

C146 10G024 606 1

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE24 PG21

Deep-Dive with AI

Search across all available documentation for this part.

C146 10G024 606 1

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE24 PG21

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10G024 606 1

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Top Entry
Thread Size	PG21

C146 10G024 Series

Part	Connector Type	Lock Location	Size	Housing Material	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size
Amphenol Tuchel Industrial C146 10G024 600 1	Hood	Locking Clip (2) on Base Bottom	E24	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	Top Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 500 1	Hood	Locking Clip (2) on Base Bottom	E24	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	Side Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 606 1	Hood	Locking Clip (1) on Base Bottom	E24	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	Top Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 507 1	Hood	Locking Clip (1) on Base Bottom	E24	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	Side Entry	100 °C	-40 °C	PG29
Amphenol Tuchel Industrial C146 10G024 507 8	Hood	Locking Clip (1) on Base Bottom	E24	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	Side Entry	100 °C	-40 °C	PG29
Amphenol Tuchel Industrial C146 10G024 506 1	Hood	Locking Clip (1) on Base Bottom	E24	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	Side Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 500 8	Hood	Locking Clip (2) on Hood	E24	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	Side Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 501 8	Hood	Locking Clip (2) on Hood	E24	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	Side Entry	100 °C	-40 °C	PG29
Amphenol Tuchel Industrial C146 10G024 606 8	Hood	Locking Clip (1) on Base Bottom	E24	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	Top Entry	100 °C	-40 °C	PG21
Amphenol Tuchel Industrial C146 10G024 603 8	Hood	Locking Clip (2) on Hood	E24	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	Top Entry	100 °C	-40 °C	PG29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 23.53

Description

General part information

C146 10G024 Series

Hood Connector Top Entry PG21 E24 IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

No documents available
