Specification	132C11039X

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Termination	Crimp
Contact Type	Female Socket
Termination Finish	Gold
Termination Finish Thickness	8 Ąin
Type	Power
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

132C110 Series

Part	Type	Contact Type	Contact Material	Contact Termination	Termination Finish Thickness	Termination Finish	Contact Form	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Contact Finish Thickness	Termination Finish Thickness

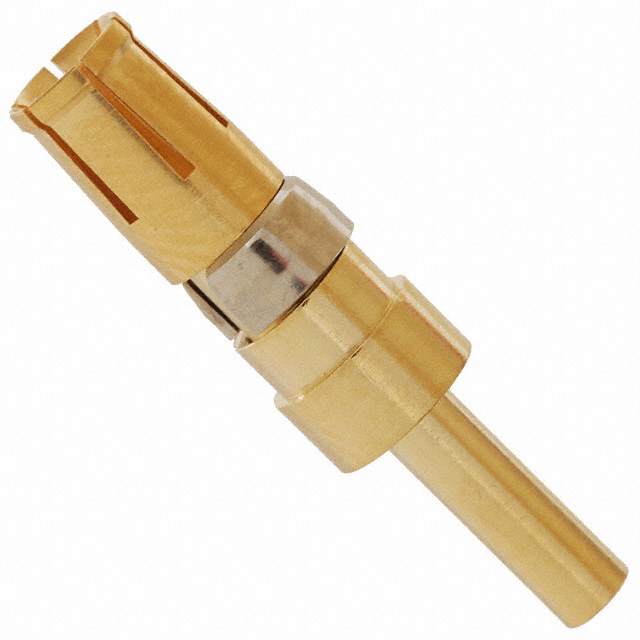

McGill Microwave Systems 132C11019X	Power	Female Socket	Copper Alloy	Crimp	8 Ąin	Gold	Machined	20.5 AWG	16 AWG	Gold	30 µin
McGill Microwave Systems 132C11039X	Power	Female Socket	Copper Alloy	Crimp	8 Ąin	Gold	Machined	12 AWG	10 AWG	Gold	30 µin

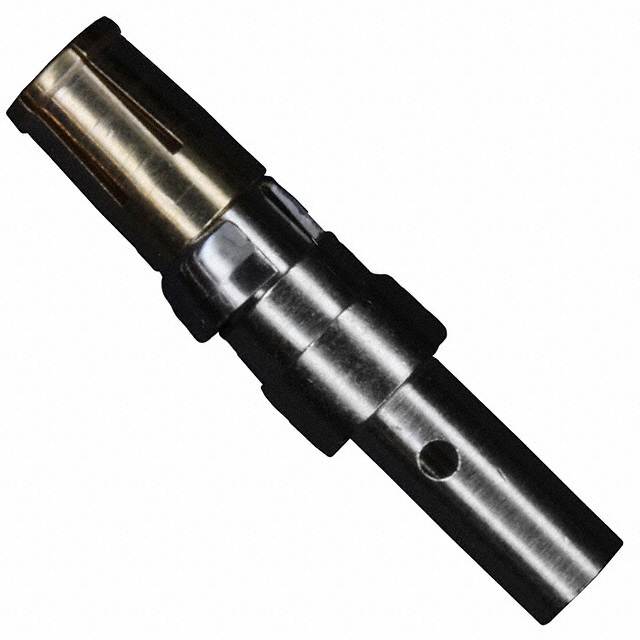

McGill Microwave Systems 132C11029X	Power	Female Socket	Copper Alloy	Crimp		Gold	Machined	14 AWG	12 AWG	Gold	30 µin	Flash
McGill Microwave Systems 132C11049X	Power	Female Socket	Copper Alloy	Crimp		Gold	Machined	10 AWG	8 AWG	Gold	30 µin	Flash
