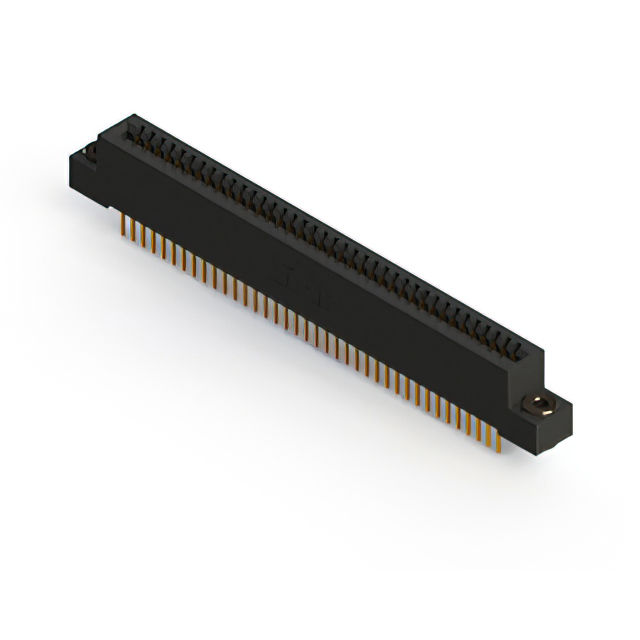

392-076-541-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-076-541-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-076-541-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
392-076 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination | Card Type | Number of Positions | Contact Type | Termination Rows | Color | Number of Rows | Gender | Contact Finish | Read Out | Contact Material | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole Right Angle | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole Right Angle | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Board Edge Straddle Mount | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Solder | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Board Edge Straddle Mount | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole | ||||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Wire Wrap | Non Specified - Dual Edge | 76 | Cantilever | 2 | Black | 2 | Female | Gold | Dual | Copper Alloy | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.91 | |
Description
General part information
392-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
