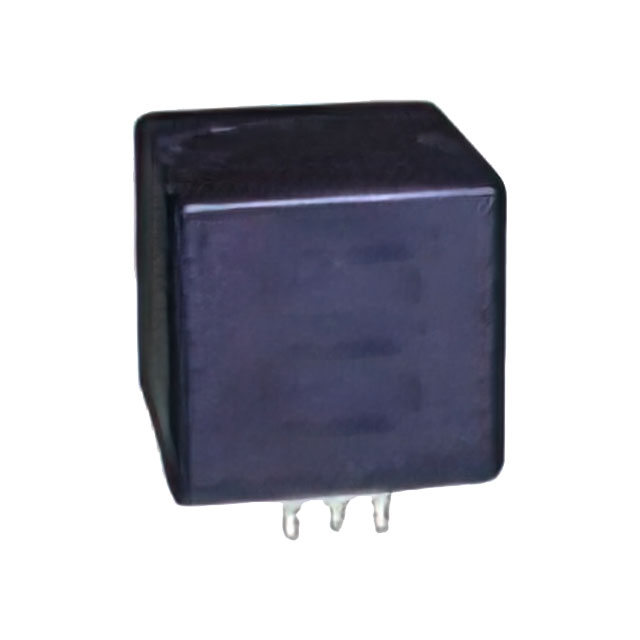

AZ983-1C-12DE

Active

American Zettler

RELAY AUTOMOTIVE SPDT 60A 12V

Search across all available documentation for this part.

Active

American Zettler

RELAY AUTOMOTIVE SPDT 60A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 60A 12V

Part	Release Time	Contact Form	Operate Time	Coil Power	Coil Resistance	Coil Voltage	Must Operate Voltage	Termination Style	Contact Rating (Current)	Switching Voltage	Mounting Type	Coil Current	Must Release Voltage	Features	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
American Zettler AZ983-1C-12DE	5 ms	SPDT (1 Form C)	7 ms	1.8 W	80 Ohms	12 VDC	7.8 VDC	PC Pin	60 A	75 VDC	Through Hole	150 mA	1.2 VDC	Sealed - Epoxy	Non Latching	85 °C	-40 °C	Silver Tin Oxide (AgSnO)
American Zettler AZ983-1A-12DE	5 ms	SPST-NO (1 Form A)	7 ms	1.8 W	80 Ohms	12 VDC	7.8 VDC	PC Pin	80 A	75 VDC	Through Hole	150 mA	1.2 VDC	Sealed - Epoxy	Non Latching	85 °C	-40 °C	Silver Tin Oxide (AgSnO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 60A 12V
