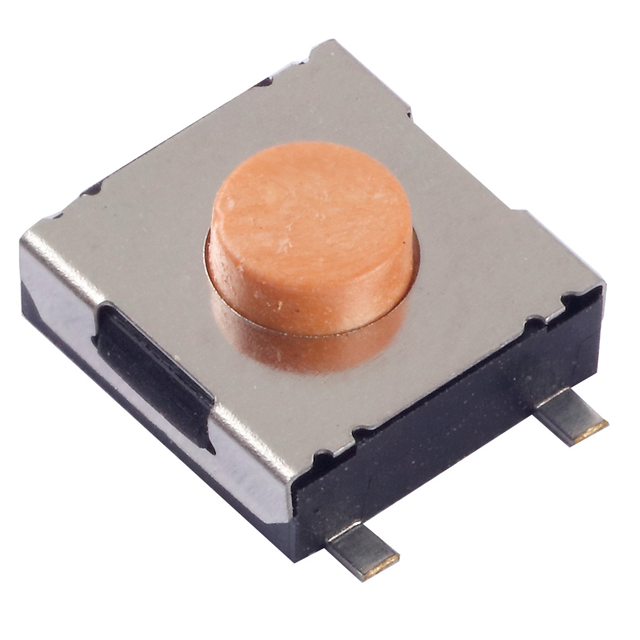

222DMVBBR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	222DMVBBR	222DMV Series

Actuator Height off PCB, Vertical	-	3.5 mm
Actuator Height off PCB, Vertical [z]	3.1 mm	2.5 - 3.1 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	200000 Cycles	200000 - 1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	360 gf	360 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.2 mm	6.2 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Rating @ Voltage	Circuit	Actuator Orientation	Illumination	Switch Function	Actuator Type	Mechanical Life	Termination Style	Mounting Type	Operating Force	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical [z]	Switch Travel	Actuator Height off PCB, Vertical
CTS Electrocomponents 222DMVBBR	85 °C	-40 °C	Tactile Feedback	0.05 A, 12 VDC	SPST-NO	Top Actuated	Non-Illuminated	Off-Mom	Standard	200000 Cycles	Gull Wing	Surface Mount	360 gf	6.2 mm	6.2 mm	3.1 mm	0.25 mm
CTS Electrocomponents 222DMVCBR	85 °C	-40 °C	Tactile Feedback	0.05 A, 12 VDC	SPST-NO	Top Actuated	Non-Illuminated	Off-Mom	Standard	200000 Cycles	Gull Wing	Surface Mount	360 gf	6.2 mm	6.2 mm		0.25 mm	3.5 mm
CTS Electrocomponents 222DMVABR	85 °C	-40 °C	Tactile Feedback	0.05 A, 12 VDC	SPST-NO	Top Actuated	Non-Illuminated	Off-Mom	Standard	200000 Cycles	Gull Wing	Surface Mount	360 gf	6.2 mm	6.2 mm	2.5 mm	0.25 mm
CTS Electrocomponents 222DMVCAR	85 °C	-40 °C	Tactile Feedback	0.05 A, 12 VDC	SPST-NO	Top Actuated	Non-Illuminated	Off-Mom	Standard	1000000 Cycles	Gull Wing	Surface Mount		6.2 mm	6.2 mm		0.25 mm	3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.16

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
