CMDA20AYAA7D1S
ActiveVisual Communications Company - VCC

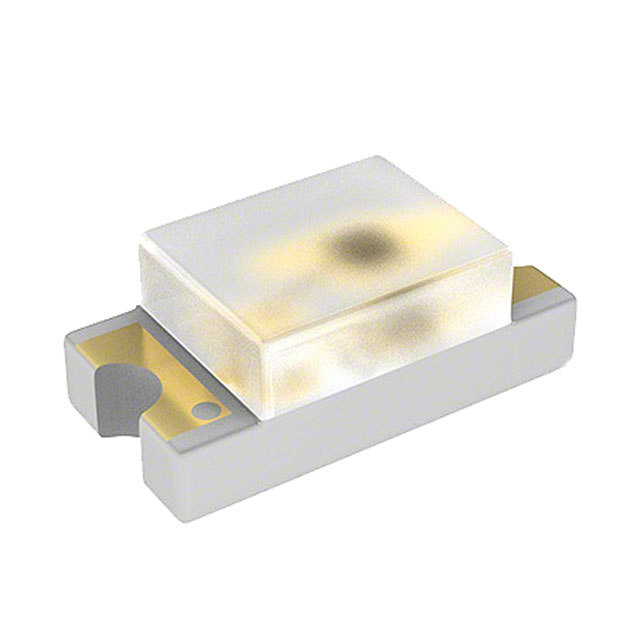

LED AMBER/GREEN DIFF 0603 SMD
CMDA20AYAA7D1S
ActiveVisual Communications Company - VCC
LED AMBER/GREEN DIFF 0603 SMD
Description
General part information
CMDA20 Series
Amber, Green LED Indication - Discrete 2.2V Amber, 2.2V Green 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CMDA20AYAA7D1S |
|---|---|
| Color | Green, Amber |
| Configuration | Independent |
| Current - Test (Amber) | 20 mA |
| Current - Test (Green) | 20 mA |
| Current - Test Colors | Amber, Green |
| Height (Max) | 0.5 mm |
| Lens Color | White |
| Lens Length | 1.6 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Lens Width | 0.8 mm |
| Millicandela Rating (Amber) | 8 mcd |
| Millicandela Rating (Green) | 15 mcd |
| Millicandela Rating Colors | Amber, Green |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Value 1) | 2.2 V |
| Voltage - Forward (Vf) (Typ) (Value 2) | 2.2 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Amber |
| Wavelength - Peak (Amber) | 605 nm |
| Wavelength - Peak (Green) | 570 nm |
| Wavelength - Peak Colors | Green, Amber |
