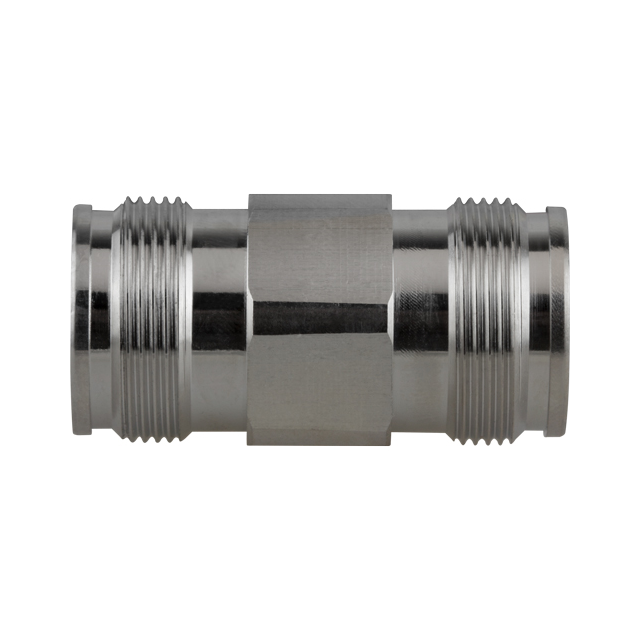

RFD-43F-F

Active

RF Industries

4.3/10 FEMALE-4.3/10 FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

RFD-43F-F

Active

RF Industries

4.3/10 FEMALE-4.3/10 FEMALE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RFD-4 Series

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To 4.3/10 Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFD-43F-F	RFD-4 Series

Adapter Series	-	4.3/10, N
Adapter Series [Max]	4.3/10	4.3/10
Adapter Series [Min]	4.3/10	4.3/10
Adapter Type	Jack to Jack	Plug to Plug, Plug to Jack, Jack to Jack
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Brass, Phosphor Bronze, Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Male to Male, Female to Female
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket	4.3/10 Plug, Male Pin, N Plug, Male Pin, 4.3/10 Jack, Female Socket, N Jack, Female Socket
Convert To (Adapter End)	Female Socket, 4.3/10 Jack	4.3/10 Plug, Male Pin, Female Socket, 4.3/10 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Mounting Feature	-	Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight, Right Angle

RFD-4 Series

4.3/10 MALE-4.3/10 MALE

Part	Adapter Series [Max]	Adapter Series [Min]	Adapter Type	Dielectric Material	Mounting Type	Center Contact Plating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Style	Convert To (Adapter End)	Center Contact Material	Impedance	Convert From (Adapter End)	Body Material	Frequency - Max [Max]	Conversion Type	Adapter Series	Mounting Feature
RF Industries RFD-43M-M	4.3/10	4.3/10	Plug to Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	White Bronze	-40 °C	155 °C	Male to Male	Straight	4.3/10 Plug, Male Pin	Brass	50 Ohms	4.3/10 Plug, Male Pin	Brass	6000 MHz	Same Series
RF Industries RFD-43F-NM			Plug to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	White Bronze	-40 °C	155 °C		Straight	4.3/10 Jack, Female Socket	Phosphor Bronze	50 Ohms	N Plug, Male Pin	Brass	6000 MHz	Between Series	4.3/10, N
RF Industries RFD-43F-FBH	4.3/10	4.3/10	Jack to Jack	Polytetrafluoroethylene (PTFE)		Silver	White Bronze	-40 °C	155 °C	Female to Female	Straight	4.3/10 Jack, Female Socket	Beryllium Copper	50 Ohms	4.3/10 Jack, Female Socket	Brass	6000 MHz	Same Series		Bulkhead
RF Industries RFD-43M-FRA	4.3/10	4.3/10	Plug to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line), Right Angle	Silver	White Bronze	-40 °C	155 °C		Right Angle	4.3/10 Jack, Female Socket	Beryllium Copper	50 Ohms	4.3/10 Plug, Male Pin	Brass	6000 MHz	Same Series
RF Industries RFD-43F-F	4.3/10	4.3/10	Jack to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	White Bronze	-40 °C	155 °C	Female to Female	Straight	4.3/10 Jack, Female Socket	Beryllium Copper	50 Ohms	4.3/10 Jack, Female Socket	Brass	6000 MHz	Same Series
RF Industries RFD-43F-NF			Jack to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Silver	White Bronze	-40 °C	155 °C	Female to Female	Straight	4.3/10 Jack, Female Socket	Beryllium Copper	50 Ohms	Female Socket, N Jack	Brass	6000 MHz	Between Series	4.3/10, N
