MAX9938TEBS+T
ActiveAnalog Devices Inc./Maxim Integrated

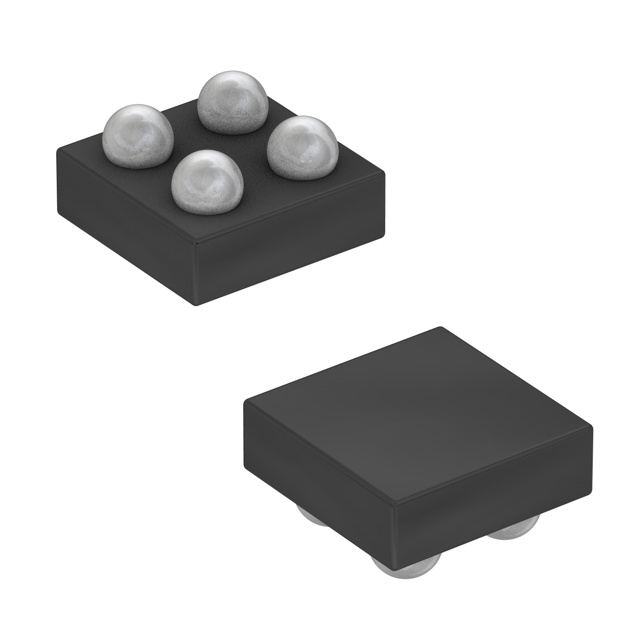

IC CURRENT SENSE 1 CIRCUIT 4UCSP
Deep-Dive with AI
Search across all available documentation for this part.
MAX9938TEBS+T
ActiveAnalog Devices Inc./Maxim Integrated
IC CURRENT SENSE 1 CIRCUIT 4UCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9938TEBS+T | MAX9938 Series |
|---|---|---|
| -3db Bandwidth | 125 kHz | 15 - 125 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Board Type | - | Fully Populated |
| Channels per IC | - | 1 - Single |
| Current - Supply | 1.1 µA | 1.1 µA |
| Current - Supply (Main IC) | - | 1.1 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 4-WFBGA, CSPBGA | 4-WFBGA, CSPBGA, SC-74A, SOT-753, 6-WDFN |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 4-UCSP | 4-UCSP, SOT-23-5, 6-µDFN (2x2) |
| Supplier Device Package [x] | 1.05 | 1.05 |
| Supplier Device Package [y] | 1.05 | 1.05 |
| Utilized IC / Part | - | MAX9938 |
| Voltage - Input Offset | 100 çV | 100 çV |
| Voltage - Supply Span (Max) [Max] | 28 V | 28 V |
| Voltage - Supply Span (Min) [Min] | 1.6 V | 1.6 V |
| Voltage - Supply, Single/Dual (±) | - | 28 V |
| Voltage - Supply, Single/Dual (±) | - | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX9938 Series
IC CURRENT SENSE 1 CIRCUIT 4UCSP
| Part | Current - Supply | Voltage - Supply Span (Min) [Min] | Mounting Type | Amplifier Type | Voltage - Supply Span (Max) [Max] | Number of Circuits | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Voltage - Input Offset | -3db Bandwidth | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Board Type | Utilized IC / Part | Supplied Contents | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Channels per IC | Current - Supply (Main IC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9938FEBS+TG45 | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 4-UCSP | 1.05 | 1.05 | 100 çV | 60 kHz | 4-WFBGA, CSPBGA | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938TEBS+TG45 | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 4-UCSP | 1.05 | 1.05 | 100 çV | 125 kHz | 4-WFBGA, CSPBGA | 85 °C | -40 °C | |||||||
Analog Devices Inc./Maxim Integrated MAX9938FEBS+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 4-UCSP | 1.05 | 1.05 | 100 çV | 60 kHz | 4-WFBGA, CSPBGA | 85 °C | -40 °C | |||||||
Analog Devices Inc./Maxim Integrated MAX9938HEUK+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | SOT-23-5 | 100 çV | 30 kHz | SC-74A, SOT-753 | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938FEUK+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | SOT-23-5 | 100 çV | 60 kHz | SC-74A, SOT-753 | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938TEUK+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | SOT-23-5 | 100 çV | 125 kHz | SC-74A, SOT-753 | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938FELT+TG7 | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 6-µDFN (2x2) | 100 çV | 60 kHz | 6-WDFN | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938EVKIT+ | Current Sense | 60 kHz | Fully Populated | MAX9938 | Board(s) | 28 V | 1.6 V | 1 - Single | 1.1 µA | ||||||||||||
Analog Devices Inc./Maxim Integrated MAX9938TEBS+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 4-UCSP | 1.05 | 1.05 | 100 çV | 125 kHz | 4-WFBGA, CSPBGA | 85 °C | -40 °C | |||||||
Analog Devices Inc./Maxim Integrated MAX9938FELT+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 6-µDFN (2x2) | 100 çV | 60 kHz | 6-WDFN | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9938HEBS+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | 4-UCSP | 1.05 | 1.05 | 100 çV | 30 kHz | 4-WFBGA, CSPBGA | 85 °C | -40 °C | |||||||
Analog Devices Inc./Maxim Integrated MAX9938WEUK+T | 1.1 µA | 1.6 V | Surface Mount | Current Sense | 28 V | 1 | SOT-23-5 | 100 çV | 15 kHz | SC-74A, SOT-753 | 85 °C | -40 °C |
Description
General part information
MAX9938 Series
Current Sense Amplifier 1 Circuit 4-UCSP (1.05x1.05)
