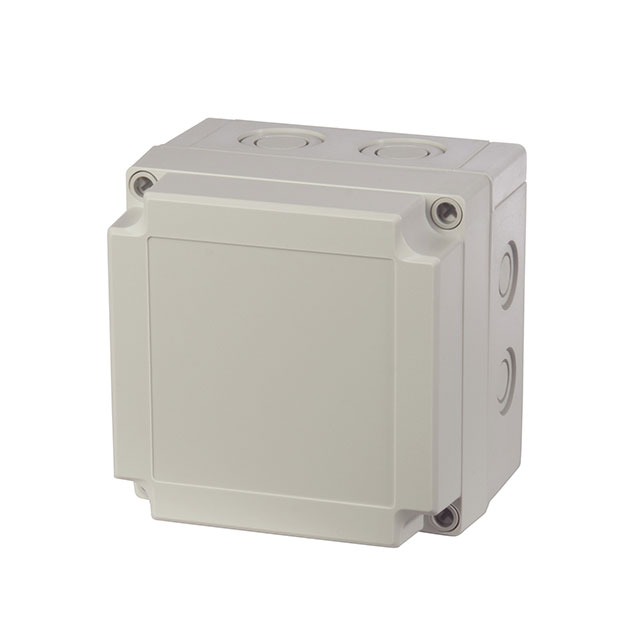

UL PCM 175/85 XG

Active

FIBOX Enclosures

BOX PLAS LGT GRY 7.09"L X 7.09"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLAS LGT GRY 7.09"L X 7.09"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PCM 175/85 XG	UL PCM 175 Series

Area (L x W)	325 cm²	325 cm²
Area (L x W)	50.3 in²	50.3 in²
Color	Light Gray	Gray, Clear Cover/Door, Light Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	83.82 mm	83.82 - 99.06 mm
Height [z]	3.3 in	3.3 - 3.9 in
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Material Flammability Rating	UL 746C 5	UL 746C 5
Ratings	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6
Size / Dimension [x]	180.09 mm	180.09 mm
Size / Dimension [x]	7.09 in	7.09 in
Size / Dimension [y]	180.09 mm	180.09 mm
Size / Dimension [y]	7.09 "	7.09 "

BOX PLASTIC 7.09"L X 7.09"W

Part	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Material Flammability Rating	Height [z]	Height [z]	Design	Ratings	Container Type	Material
FIBOX Enclosures UL PCM 175/100 XT	325 cm²	50.3 in²	180.09 mm	180.09 mm	7.09 in	7.09 "	Clear Cover/Door, Gray	UL 746C 5	99.06 mm	3.9 in	Cover Included	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Box	Plastic, Polycarbonate
FIBOX Enclosures UL PCM 175/85 XG	325 cm²	50.3 in²	180.09 mm	180.09 mm	7.09 in	7.09 "	Light Gray	UL 746C 5	83.82 mm	3.3 in	Cover Included	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Box	Plastic, Polycarbonate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 112.07

General part information

Box Plastic, Polycarbonate Light Gray Cover Included 7.090" L x 7.090" W (180.09mm x 180.09mm) X 3.300" (83.82mm)

Technical documentation and resources

No documents available
