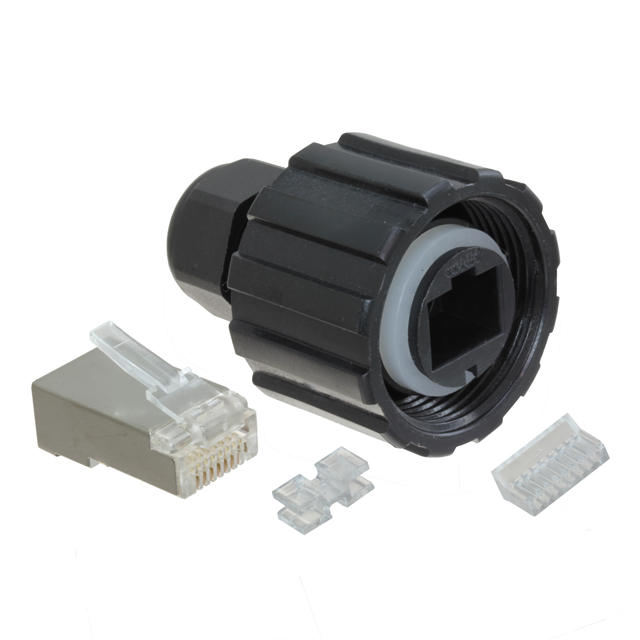

17-150254
ActiveAmphenol CONEC
PLUG ASSY RJ45 CAT.6A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17-150254
ActiveAmphenol CONEC
PLUG ASSY RJ45 CAT.6A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-150254 |
|---|---|
| Cable Type | Flat Oval Cable, Solid or Stranded Wires |
| Color | Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.2 A |
| Features | Circular Threaded Coupling |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 2.343 " |
| Length | 59.5 mm |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6a |
| Shield Material | Copper Alloy |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.45 | |
| 10 | $ 9.41 | |||
| 25 | $ 8.86 | |||
| 50 | $ 8.64 | |||
| 100 | $ 8.41 | |||
| 250 | $ 7.50 | |||
| 500 | $ 7.04 | |||
| 1000 | $ 6.23 | |||
Description
General part information
17-1502 Series
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
