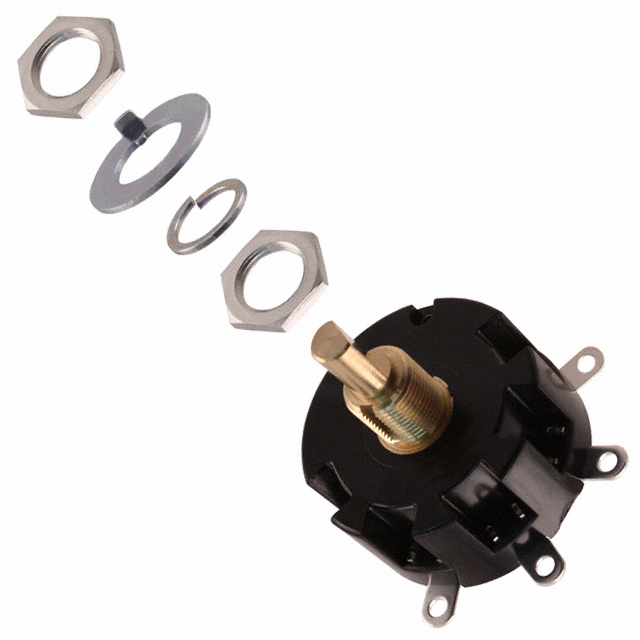

HS13Y-D

Obsolete

NKK Switches

SWITCH ROTARY 3POS 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROTARY 3POS 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	HS13Y-D

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	6 mm
Angle of Throw	45 °
Circuit per Deck	SP3T
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A, 5 A
Depth Behind Panel	20 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	1
Panel Cutout Dimensions [diameter]	10.3 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Contact Timing	Voltage Rating - AC	Current Rating (Amps)	Index Stops	Termination Style	Number of Poles per Deck	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Circuit per Deck	Angle of Throw	Number of Decks [custom]	Actuator Length [x]	Depth Behind Panel	Actuator Type	Actuator Type [diameter]	Contact Material
NKK Switches HS13Y-D	Non-Shorting	125 V	5 A 6 A	Fixed	Solder Lug	1	30 V	10.3 mm	SP3T	45 °	1	10 mm	20 mm	Flatted	6 mm	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rotary Switch 3 Position SP3T 6A (AC), 5A (DC) 125 VAC Panel Mount
