WT1012N

Active

Apex Tool Group

SOLDERING STATION, WT SERIES, 120 V, 90 W, WT1 STATION, WP80 IRON, LTB TIP, WSR201 REST

Find alt

Alpha

WT1012N

Active

Apex Tool Group

SOLDERING STATION, WT SERIES, 120 V, 90 W, WT1 STATION, WP80 IRON, LTB TIP, WSR201 REST

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

WT1012 Series

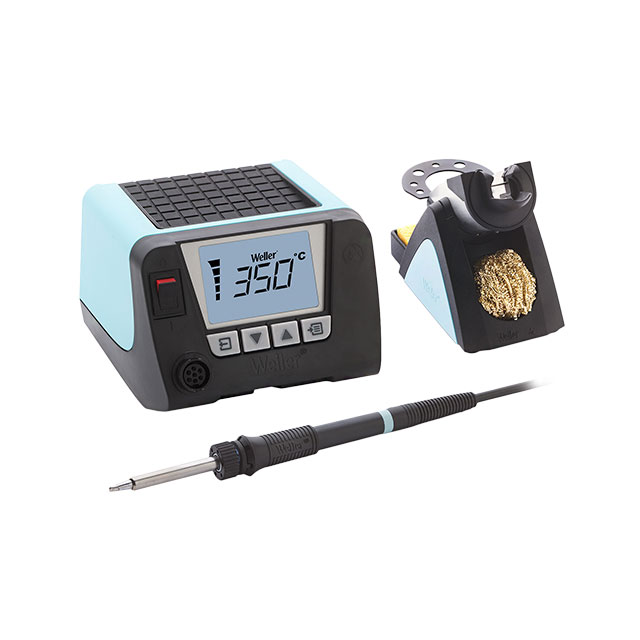

WT1012N is a 95W 1-channel soldering station. It includes WSP 80 soldering iron (80 W) with silver-line tips for all standard soldering applications (tip family: LT).

Technical Specifications

Parameters and characteristics for this part

Specification	WT1012N

Base Unit	WT1
Control/Display Type	Digital
Features	ESD Safe, LCD Display
Includes	Soldering Pencil
Number of Channels	1
Plug Type	Included, Not Specified
Supplied Iron, Tweezer, Handle	WSP80
Supplied Tips/Nozzles	LTB
Temperature Range (Max)	850 °F
Temperature Range (Min)	150 °F
Tip Cleaner	Scouring Pad, Sponge
Type	Soldering
Voltage - Input	120 VAC
Wattage	90 W
Workstand	WSR201

WT1012 Series

Part	Tip Cleaner	Number of Channels	Control/Display Type	Voltage - Input	Wattage	Supplied Tips/Nozzles	Base Unit	Supplied Iron, Tweezer, Handle	Type	Workstand	Plug Type	Temperature Range (Min)	Temperature Range (Max)	Features	Includes
Apex Tool Group WT1012N	Scouring Pad Sponge	1	Digital	120 VAC	90 W	LTB	WT1	WSP80	Soldering	WSR201	Included Not Specified	150 °F	850 °F	ESD Safe LCD Display	Soldering Pencil

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

WT1,WT1H Datasheet

WT1012N | Datasheet
