Specification	2365497-8

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 Ąin
Contact Finish Thickness - Post	78.7 µin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4.2 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural, Green
Insulation Height	0.374 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

2365497 Series

Part	Features	Contact Type	Fastening Type	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Insulation Material	Style	Shrouding	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Termination	Insulation Height	Number of Positions Loaded	Pitch - Mating	Contact Shape	Number of Rows	Voltage Rating	Contact Finish - Post	Contact Material	Number of Positions	Current Rating	Insulation Color	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2365497-3	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	3	4.2 A	Green Natural	78.7 µin
TE Connectivity AMP Connectors 2365497-2	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	2	4.2 A	Green Natural	78.7 µin

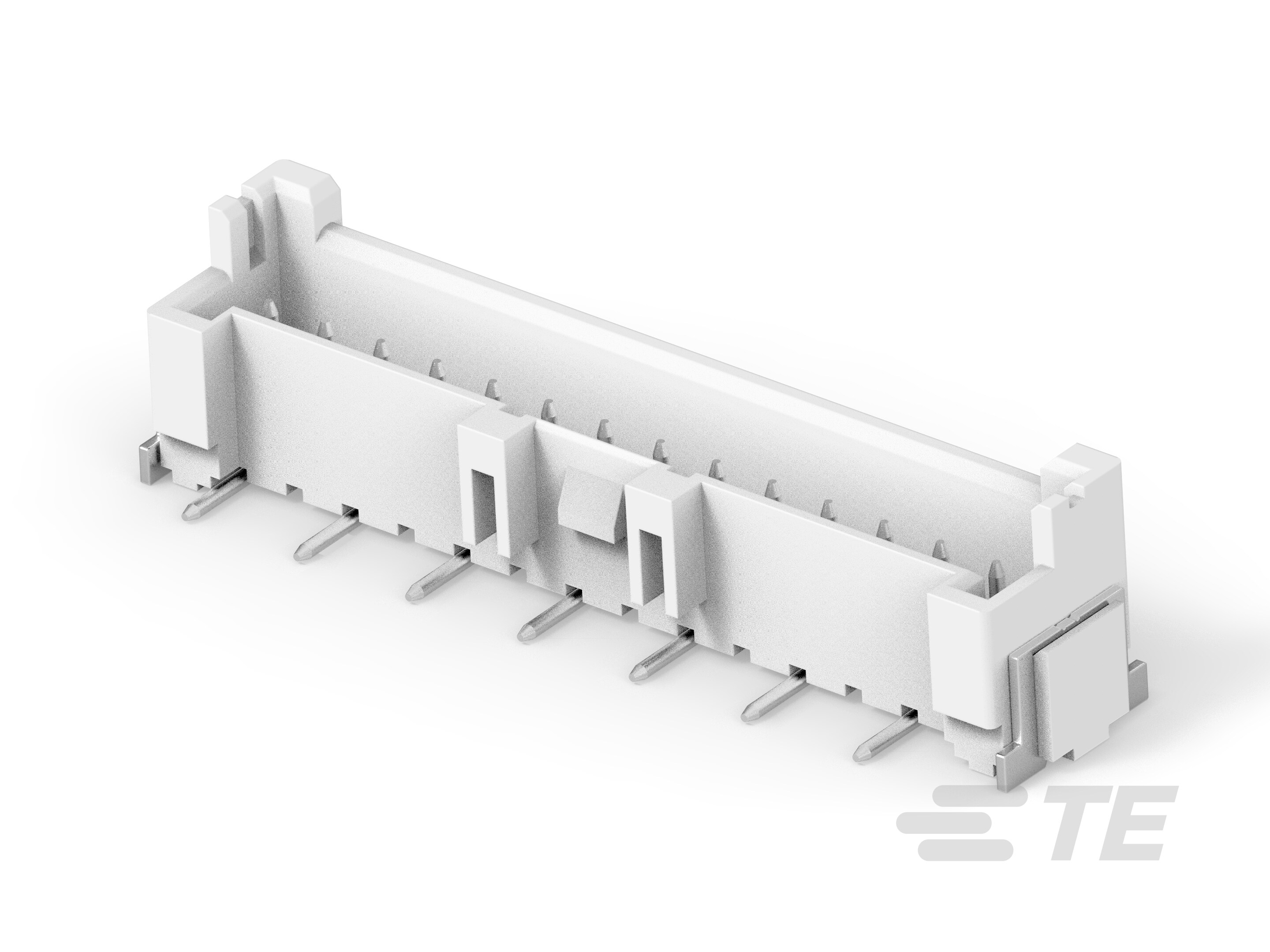

TE Connectivity AMP Connectors 1-2365497-4	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	14	4.2 A	Green Natural	78.7 µin
TE Connectivity AMP Connectors 1-2365497-5

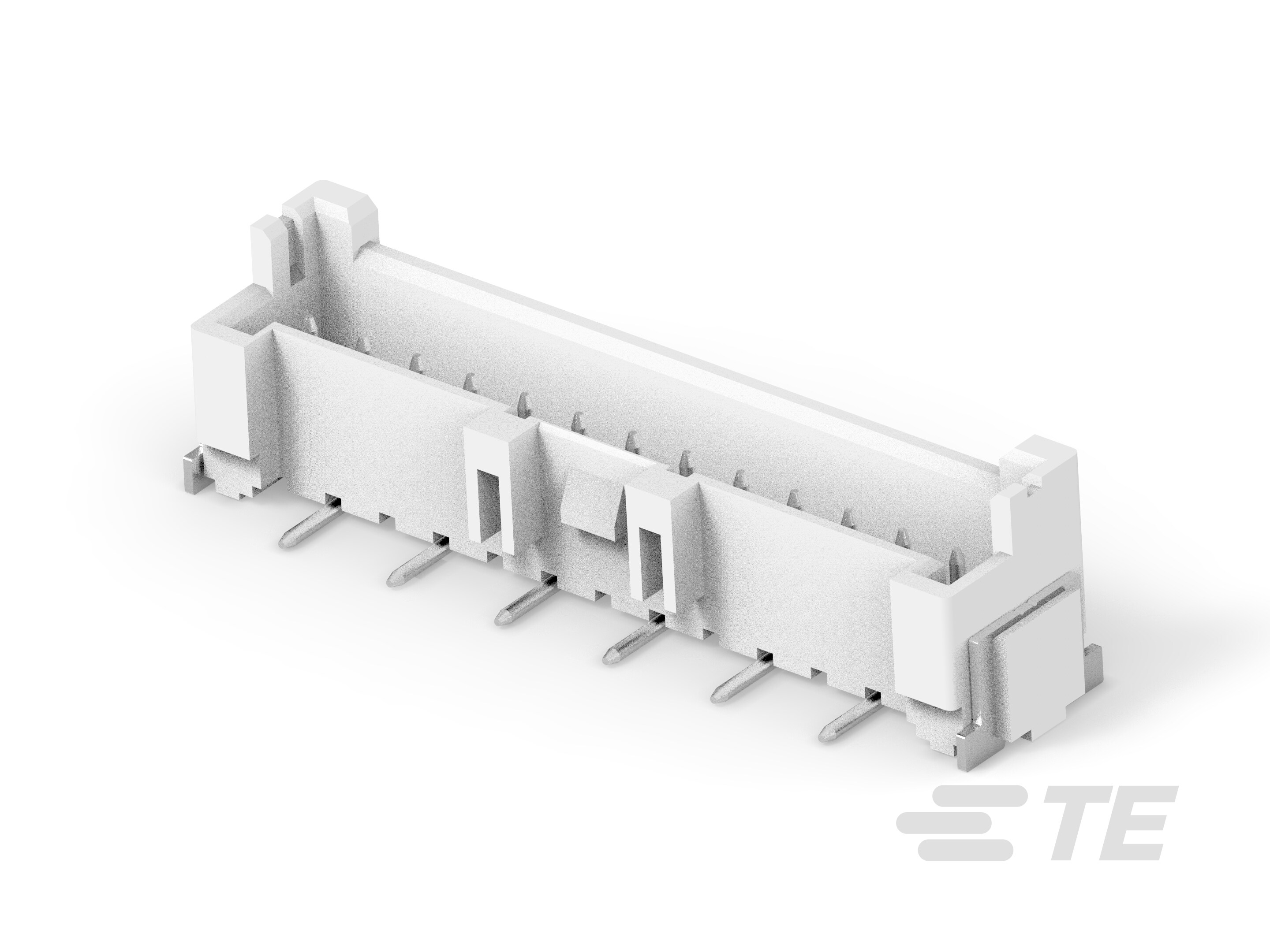

TE Connectivity AMP Connectors 1-2365497-3	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	13	4.2 A	Green Natural	78.7 µin
TE Connectivity AMP Connectors 1-2365497-1

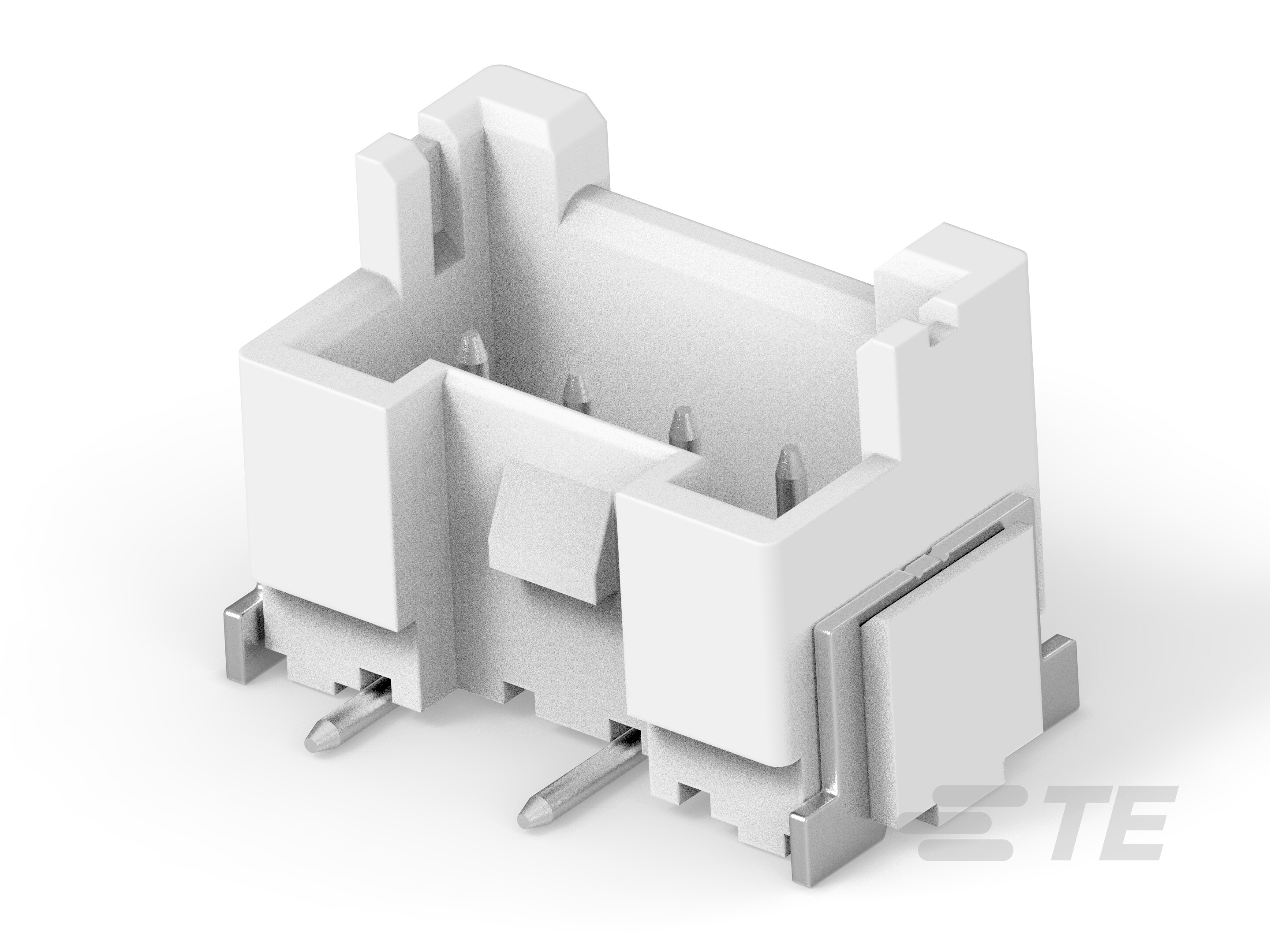

TE Connectivity AMP Connectors 2365497-4	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	4	4.2 A	Green Natural	78.7 µin
TE Connectivity AMP Connectors 1-2365497-2	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	12	4.2 A	Green Natural	78.7 µin
TE Connectivity AMP Connectors 2365497-8	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	8	4.2 A	Green Natural	78.7 µin

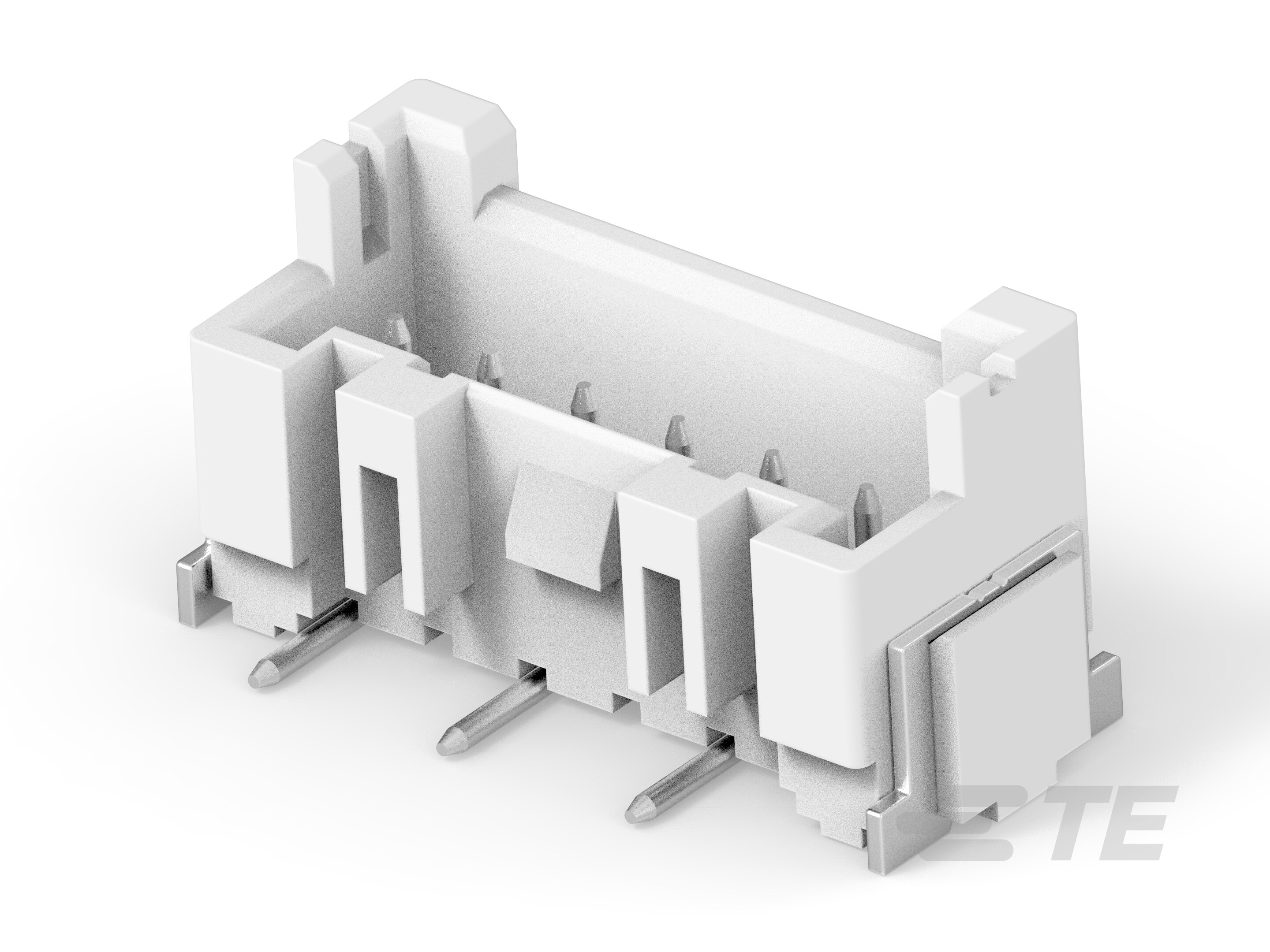

TE Connectivity AMP Connectors 2365497-6	Solder Retention	Male Pin	Push-Pull	Tin	-55 °C	105 °C	UL94 V-0	Nylon Polyamide (PA)	Board Cable/Wire	Shrouded - 4 Wall	Surface Mount	Header	78.7 Ąin	Solder	0.374 in	All	0.098 in	Square	1	250 V	Tin	Copper Alloy	6	4.2 A	Green Natural	78.7 µin
