112809-75

Active

Amphenol RF

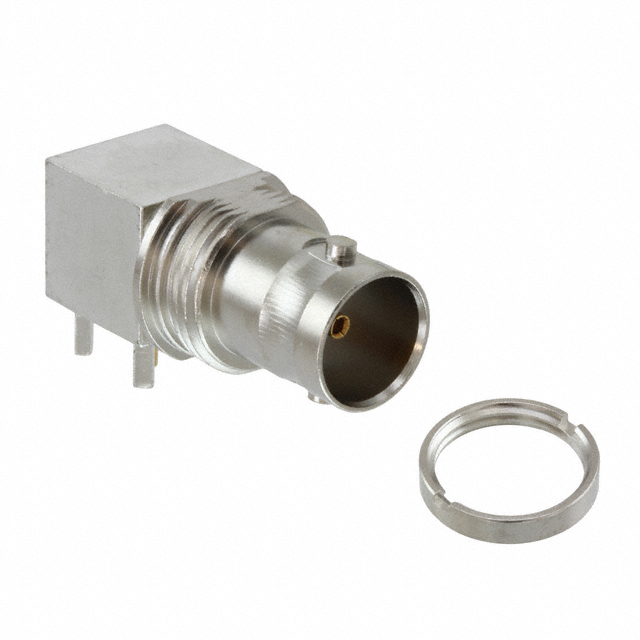

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	112809-75

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Nut, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mating Cycles	Frequency - Max [Max]	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Termination	Center Contact Material	Insertion Loss	Dielectric Material	Impedance	Center Contact Plating	Fastening Type	Number of Ports	Body Material	Connector Style	Shield Termination	Includes	Mounting Feature	Body Finish	Voltage Rating
Amphenol RF 112809-75	500	3 GHz	Silver	-65 ░C	165 °C	Female Socket Jack	Panel Mount Right Angle Through Hole	Solder	Phosphor Bronze	0.2 dB	Polytetrafluoroethylene (PTFE)	75 Ohms	Gold	Bayonet Lock	1	Brass	BNC	Solder	1 Connector 1 Nut	Bulkhead - Front Side Nut	Nickel	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
