Specification	ISL1571IRZ-EVAL

-3db Bandwidth	250 MHz
Amplifier Type	Standard (General Purpose)
Channels per IC (Count)	2
Channels per IC (Dual)	2
Channels per IC (Type)	Dual
Contents	Board
Current - Output / Channel	1 A
Current - Supply (Main IC)	0.015 mA
Output Type	Single-Ended
Slew Rate	1200 V/µs
Supply Configuration	Dual, Single
Utilized IC / Part	ISL1571
Voltage - Supply (Dual) Maximum (Magnitude)	6 V
Voltage - Supply (Dual) Minimum (Magnitude)	2.25 V
Voltage - Supply (Single) Maximum	12 V
Voltage - Supply (Single) Minimum	4.5 V

ISL1571 Series

Part	Slew Rate	Package Name	Package Feature	Package Features	Package Pitch	Package Length	Package Width	Current - Input Bias	Voltage - Supply Span (Min)	-3db Bandwidth	Voltage - Supply Span (Max)	Current - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Amplifier Type	Mounting Type	Number of Circuits	Voltage - Input Offset	Output Type	Current - Output / Channel	Package / Case	Contents	Supply Configuration	Voltage - Supply (Dual) Minimum (Magnitude)	Voltage - Supply (Single) Maximum	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Single) Minimum	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Current - Supply (Main IC)	Utilized IC / Part	Supplied Contents	Board Type

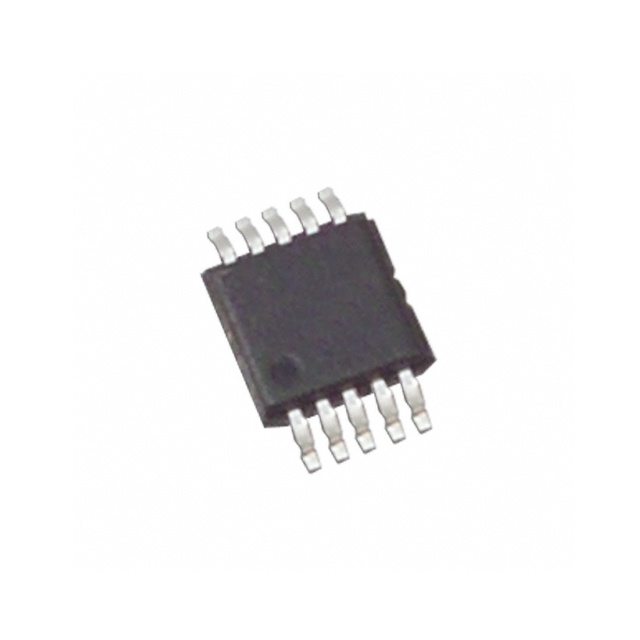

Renesas Electronics Corporation ISL1571IUEZ-T7	1200 V/µs	10-HMSOP 10-MSOP 10-VFSOP	Exposed Pad	Exposed Pad	0.118 in	0.118 in	3 mm	7 µA	4.5 V	250 MHz	12 V	15 mA	-40 °C	85 °C	General Purpose	Surface Mount	2	40 mV	Differential	1 A
Renesas Electronics Corporation ISL1571IRZ	1200 V/µs	16-QFN				4 mm	4 mm	7 µA	4.5 V	250 MHz	12 V	15 mA	-40 °C	85 °C	General Purpose	Surface Mount	2	40 mV	Differential	1 A	16-TFQFN Exposed Pad
Renesas Electronics Corporation ISL1571IRZ-EVAL	1200 V/µs									250 MHz					Standard (General Purpose)				Single-Ended	1 A		Board	Dual Single	2.25 V	12 V	6 V	4.5 V	2	Dual	2	0.015 mA	ISL1571
Renesas Electronics Corporation ISL1571IRZ-T7	1200 V/µs	16-QFN				4 mm	4 mm	7 µA	4.5 V	250 MHz	12 V	15 mA	-40 °C	85 °C	General Purpose	Surface Mount	2	40 mV	Differential	1 A	16-TFQFN Exposed Pad
Renesas Electronics Corporation ISL1571IUEZ-EVAL	1200 V/µs									250 MHz					General Purpose Standard (General Purpose)				Single-Ended	1 A		Board	Dual Single		12 V		4.5 V	2	Dual	2	0.015 mA	ISL1571	Board(s)	Fully Populated
