145154-4

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 120P 0.050

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 120P 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	145154-4

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI™
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	120
Number of Positions/Bay/Row [custom]	11
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder, Staggered

Part	Contact Material	Color	Mounting Type	Termination	Number of Rows	Material - Insulation	Features	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Type	Pitch [x]	Pitch [x]	Contact Finish	Gender	Read Out	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
TE Connectivity Raychem Cable Protection 145154-4	Phosphor Bronze	Natural	Through Hole	Solder Staggered	2	Thermoplastic	Board Guide	11	49	PCI™	0.05 in	1.27 mm	Gold	Female	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	120

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

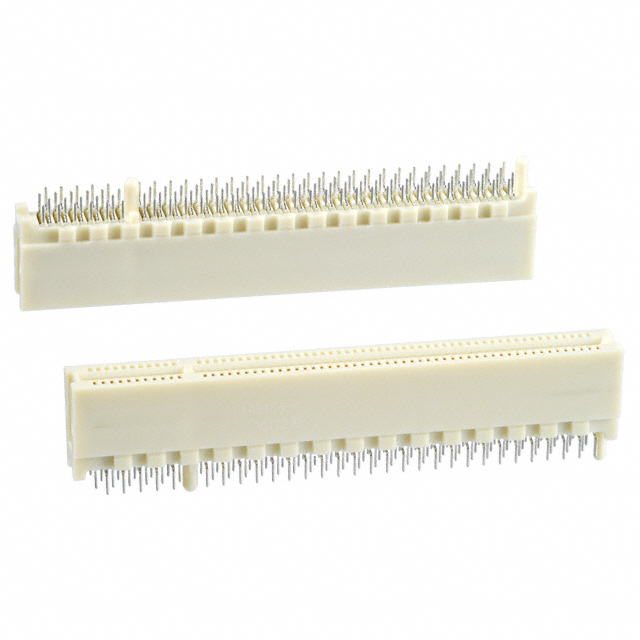

120 Position Female Connector PCI™ Gold 0.050" (1.27mm) Natural
