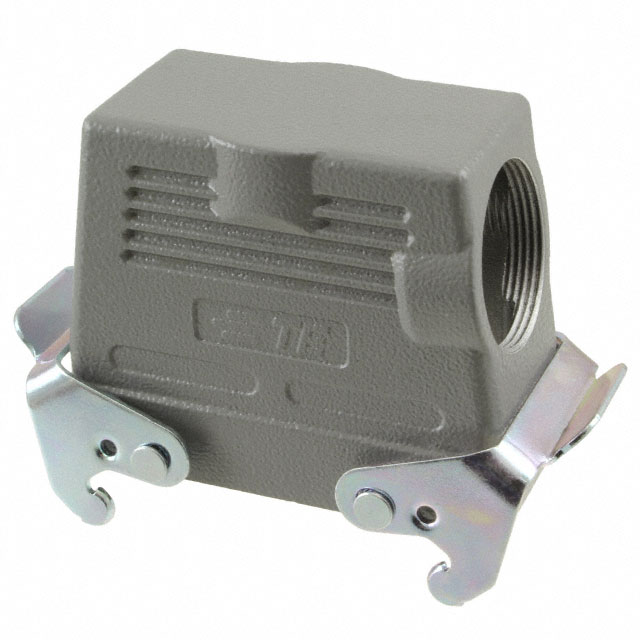

H16B-TSBH-PG29
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ16B PG29
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H16B-TSBH-PG29
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ16B PG29
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H16B-TSBH-PG29 | H16B Series |
|---|---|---|
| Connector Type | Hood | Base - Box Mount, Base - Panel Mount, Hood |
| Features | - | Cover, Feed Through |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (2) on Base Bottom, Locking Clip (2) on Hood, Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 16 B | 16 B |
| Size / Dimension [x] | 3.681 " | 3.681 - 4.606 " |
| Size / Dimension [x] | 93.5 mm | 93.5 - 117 mm |
| Size / Dimension [y] | 1.693 in | 1.693 - 2.244 " |
| Size / Dimension [y] | 43 mm | 43 - 57 mm |
| Size / Dimension [z] | 76 mm | 29.6 - 76.1 mm |
| Size / Dimension [z] | 2.992 in | 1.165 - 2.996 " |
| Style | Side Entry | Side Entry, Bottom Entry |
| Thread Size | PG29 | PG21, PG29, M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.03 | |
| 12 | $ 11.78 | |||
| 30 | $ 11.47 | |||
| 54 | $ 11.03 | |||
H16B Series
CONN BASE SIDE ENTRY SZ16B PG21
| Part | Ingress Protection | Housing Finish | Connector Type | Housing Color | Lock Location | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size | Thread Size | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H16B-SGR-PG21 | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Box Mount | Gray | Locking Clip (2) on Base Bottom | 4.606 " | 117 mm | 2.244 " | 57 mm | 56.6 mm | 2.228 " | 16 B | PG21 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-AG-SL | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Panel Mount | Gray | Locking Clip (2) on Base Bottom | 4.575 in | 116.2 mm | 1.799 " | 45.7 mm | 29.8 mm | 1.173 in | 16 B | Bottom Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | ||
TE Connectivity AMP Connectors H16B-AD-BO | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Panel Mount | Locking Clip (2) on Hood | 4.575 in | 116.2 mm | 1.799 " | 45.7 mm | 29.6 mm | 1.165 in | 16 B | Bottom Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Cover | ||
TE Connectivity AMP Connectors H16B-TSH-RO-PG29 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (1) on Base Bottom | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 76 mm | 2.992 in | 16 B | PG29 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-SGRH-LB-M32 | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Box Mount | Gray | Locking Clip (1) on Base Bottom | 16 B | M32 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |||||||
TE Connectivity AMP Connectors H16B-SDRH-BO-PG29 | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Box Mount | Gray | Locking Clip (2) on Hood | 4.606 " | 117 mm | 2.244 " | 57 mm | 76.1 mm | 2.996 in | 16 B | PG29 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Cover |
TE Connectivity AMP Connectors H16B-TS-PG21 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (2) on Base Bottom | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 60 mm | 2.362 " | 16 B | PG21 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-TSBH-PG29 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (2) on Hood | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 76 mm | 2.992 in | 16 B | PG29 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-AG | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Panel Mount | Gray | Locking Clip (2) on Base Bottom | 4.575 in | 116.2 mm | 1.799 " | 45.7 mm | 29.6 mm | 1.165 in | 16 B | Bottom Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | ||
TE Connectivity AMP Connectors H16B-TSH-M40 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (2) on Base Bottom | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 76 mm | 2.992 in | 16 B | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | ||
TE Connectivity AMP Connectors H16B-SGRH-2M32 | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Box Mount | Gray | Locking Clip (2) on Base Bottom | 4.606 " | 117 mm | 2.244 " | 57 mm | 76.1 mm | 2.996 in | 16 B | M32 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Feed Through |
TE Connectivity AMP Connectors H16B-TSB-PG21 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (2) on Hood | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 60 mm | 2.362 " | 16 B | PG21 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-TS-RO-M32 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (1) on Base Bottom | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 60 mm | 2.362 " | 16 B | M32 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | |
TE Connectivity AMP Connectors H16B-SDR-LB-PG21 | IP65 - Dust Tight, Water Resistant | Powder Coated | Base - Box Mount | Gray | Locking Clip (1) on Base Bottom | 16 B | PG21 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Cover | ||||||
TE Connectivity AMP Connectors H16B-TS-RO-PG21 | IP65 - Dust Tight, Water Resistant | Powder Coated | Hood | Gray | Locking Clip (1) on Base Bottom | 3.681 " | 93.5 mm | 1.693 in | 43 mm | 60 mm | 2.362 " | 16 B | PG21 | Side Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C |
Description
General part information
H16B Series
Hood Connector Side Entry PG29 16B IP65 - Dust Tight, Water Resistant
