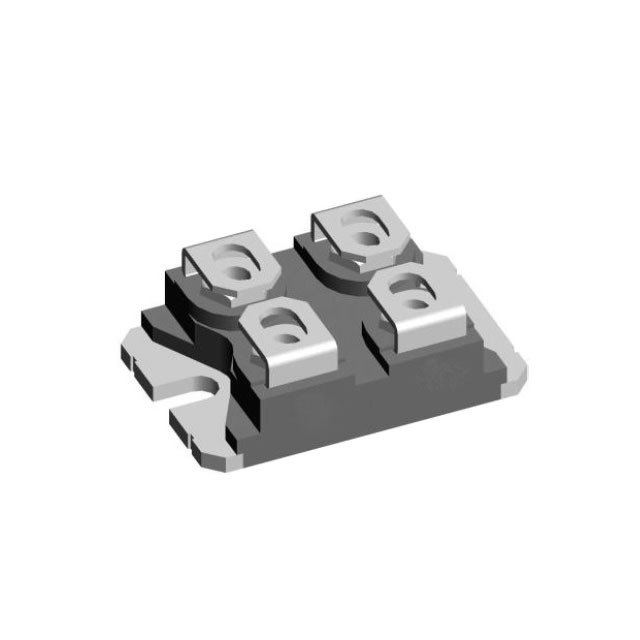

LSIC2SD120N80PA

Active

IXYS

DIODE MOD SIC 1200V 75A SOT227B

Search across all available documentation for this part.

Active

IXYS

DIODE MOD SIC 1200V 75A SOT227B

Technical Specifications

Parameters and characteristics for this part

Specification	LSIC2SD120N80PA

Current - Average Rectified (Io) (per Diode)	75 A
Current - Reverse Leakage @ Vr	100 µA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SOT-227-4, miniBLOC
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	SOT-227B - miniBLOC
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Technology	Supplier Device Package	Diode Configuration	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Speed	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS LSIC2SD120N80PA	SiC (Silicon Carbide) Schottky	SOT-227B - miniBLOC	2 Independent	SOT-227-4 miniBLOC	1.8 V	Chassis Mount	1.2 kV	0 ns	100 µA	No Recovery Time	75 A	175 ░C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 2 Independent 1200 V 75A (DC) Chassis Mount SOT-227-4, miniBLOC

Technical documentation and resources

No documents available
