7928A 0105000

Active

Belden Inc.

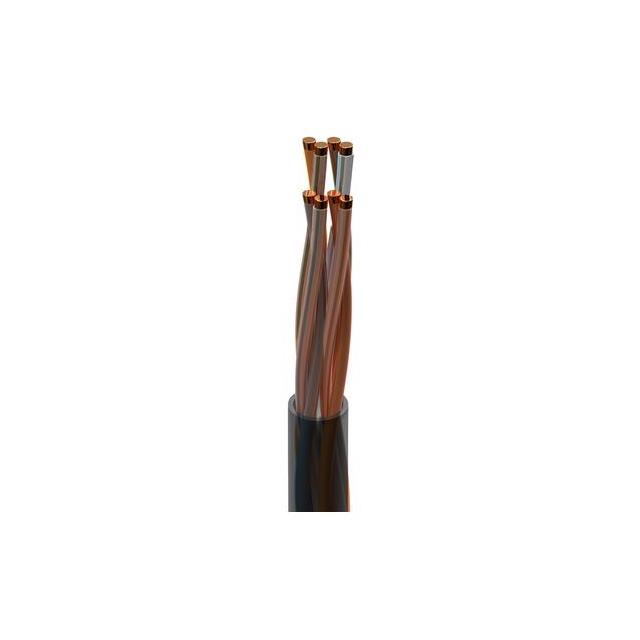

CABLE CAT5E 8CON 24AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	7928A 0105000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.187 in
Jacket (Insulation) Diameter [diameter]	4.75 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket Color	Black
Number of Conductors	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Number of Conductors	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Ratings	Jacket Color	Conductor Strand	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Conductor Insulation	Conductor Material
Belden Inc. 7928A 0105000	8	Multi-Pair Cat5e	0.187 in	4.75 mm	24 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	UL Style CMR	Black	Solid	Industrial Network	150 °C	-70 °C	300 V	Fluorinated Ethylene-Propylene (FEP)	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.13

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 5000' (1524.0m)
