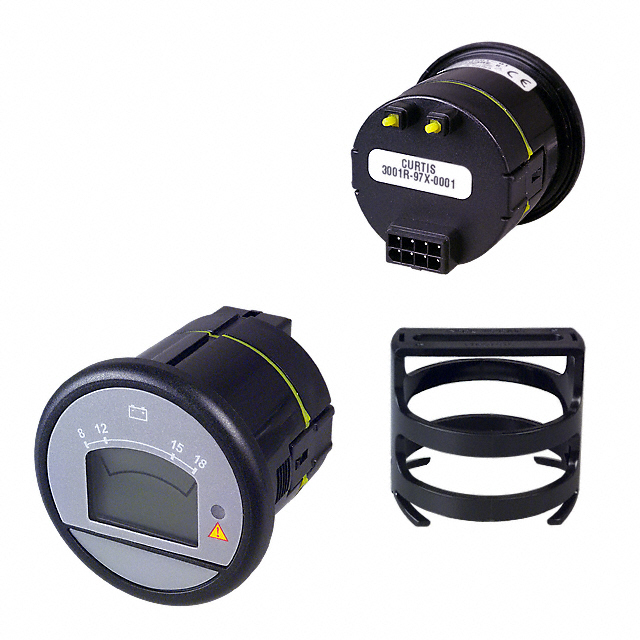

3001R-97X-0001

Obsolete

Curtis Instruments Inc.

VOLTMETER 0-12VDC LCD PANEL MT

Search across all available documentation for this part.

Obsolete

Curtis Instruments Inc.

VOLTMETER 0-12VDC LCD PANEL MT

Technical Specifications

Parameters and characteristics for this part

Specification	3001R-97X-0001

Display Characters - Height [z]	5 mm
Display Characters - Height [z]	0.196 in
Display Type	LCD - Black Bar Graph
Features	Hour Meter
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	12 VDC
Measuring Range [Min]	0 V
Measuring Type	Voltage
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Solid State
Panel Cutout Dimensions [diameter]	52 mm
Termination Style	Connector
Type	Voltmeter
Voltage - Supply	12 VDC

VOLTMETER 0-12VDC LCD PANEL MT

Part	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Ingress Protection	Type	Panel Cutout Dimensions [diameter]	Voltage - Supply	Features	Termination Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range [Min]	Display Type
Curtis Instruments Inc. 3001R-97X-0001	5 mm	0.196 in	Voltage	IP65 - Dust Tight, Water Resistant	Voltmeter	52 mm	12 VDC	Hour Meter	Connector	Solid State	85 °C	-40 °C	12 VDC	0 V	LCD - Black Bar Graph

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltmeter LCD - Black Bar Graph Display Panel Mount
