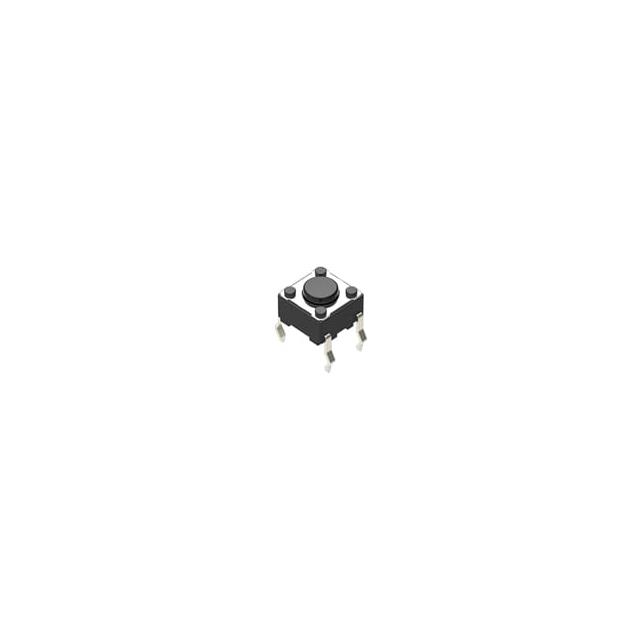

SKHHAJA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKHHAJA010	SKHHA Series

Actuator Height off PCB, Vertical	-	5 - 9.5 mm
Actuator Height off PCB, Vertical [z]	4.3 mm	4.3 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	200000 - 1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	-	100 - 260 gf
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Mounting Type	Actuator Orientation	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Illumination	Actuator Height off PCB, Vertical	Switch Travel	Contact Rating @ Voltage	Circuit	Termination Style	Operating Force	Actuator Height off PCB, Vertical [z]
Alps Alpine SKHHAMA010	500000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated	5 mm	0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin
Alps Alpine SKHHANA010	1000000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated	9.5 mm	0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin	100 gf
Alps Alpine SKHHALA010	500000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated		0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin		4.3 mm
Alps Alpine SKHHAJA010	1000000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated		0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin		4.3 mm
Alps Alpine SKHHAQA010	200000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated		0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin	260 gf	4.3 mm
Alps Alpine SKHHARA010	200000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated	5 mm	0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin	260 gf
Alps Alpine SKHHAKA010	1000000 Cycles	Through Hole	Top Actuated	Standard	Off-Mom	90 °C	-40 °C	6 mm	6 mm	Non-Illuminated	5 mm	0.25 mm	0.05 A, 12 VDC	SPST-NO	PC Pin	100 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
