96AB2-102-R
ActiveGrayhill Inc.

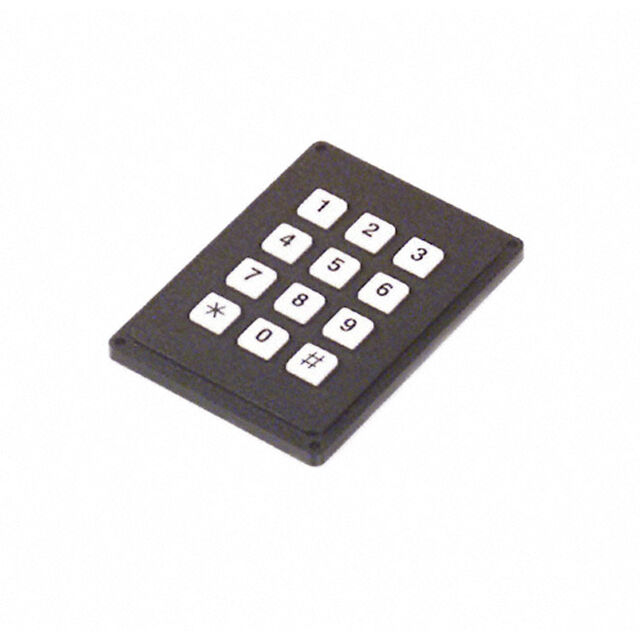

SWITCH KEYPAD 12KEY 0.005A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
96AB2-102-R
ActiveGrayhill Inc.
SWITCH KEYPAD 12KEY 0.005A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 96AB2-102-R | 96AB2 Series |
|---|---|---|
| Contact Rating @ Voltage | 0.005 A, 12 VDC | 0.005 - 12 A |
| Illumination | Non-Illuminated | Non-Illuminated, Illuminated |
| Ingress Protection | IP40 | IP40 |
| Key Color | White | White, Black |
| Key Type | Polymer | Polymer |
| Legend | Telephone Format | Telephone Format |
| Legend Color | Black | Black, White |
| Legend Type | Fixed | Fixed |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Matrix (Columns x Rows) [custom] | 3 | 3 |
| Mounting Type | Panel Mount, Rear | Panel Mount, Rear, Panel Mount, Front |
| Number of Keys | 12 | 12 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Operational Life | 1000000 Cycles | 1000000 Cycles |
| Output Type | 1.81 mOhm | 1.81 mOhm |
| Panel Cutout Dimensions [x] | 68.58 mm | 68.58 mm |
| Panel Cutout Dimensions [y] | 50.8 mm | 50.8 mm |
| Switch Type | Conductive Rubber | Conductive Rubber |
| Termination Style | Pin Header | Pin Header |
96AB2 Series
SWITCH KEYPAD 12KEY 0.005A 12V
| Part | Ingress Protection | Key Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Key Type | Legend Color | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Legend Type | Legend | Switch Type | Termination Style | Output Type | Contact Rating @ Voltage | Operational Life | Number of Keys | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 96AB2-102-R | IP40 | White | 68.58 mm | 50.8 mm | Polymer | Black | 4 | 3 | Non-Illuminated | -30 ░C | 80 C | Fixed | Telephone Format | Conductive Rubber | Pin Header | 1.81 mOhm | 0.005 A, 12 VDC | 1000000 Cycles | 12 | Panel Mount, Rear |
Grayhill Inc. 96AB2-102-F-EL | IP40 | White | Polymer | Black | 4 | 3 | Illuminated | -30 ░C | 80 C | Fixed | Telephone Format | Conductive Rubber | Pin Header | 1.81 mOhm | 0.005 A, 12 VDC | 1000000 Cycles | 12 | Panel Mount, Front | ||
Grayhill Inc. 96AB2-152-F | IP40 | Black | Polymer | White | 4 | 3 | Non-Illuminated | -30 ░C | 80 C | Fixed | Telephone Format | Conductive Rubber | Pin Header | 1.81 mOhm | 0.005 A, 12 VDC | 1000000 Cycles | 12 | Panel Mount, Front |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.67 | |
| 10 | $ 35.95 | |||
| 25 | $ 32.54 | |||
| 50 | $ 30.12 | |||
| 100 | $ 27.81 | |||
| 250 | $ 24.93 | |||
Description
General part information
96AB2 Series
Keypad Switch 12 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC
