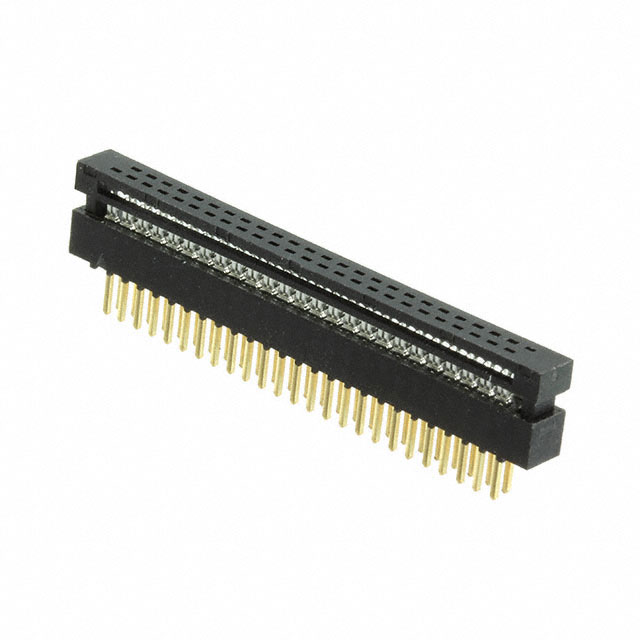

M50-3802542
ActiveHarwin Inc.
CONN DIP HDR IDC 50P 30AWG VERT
Deep-Dive with AI
Search across all available documentation for this part.
M50-3802542
ActiveHarwin Inc.
CONN DIP HDR IDC 50P 30AWG VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3802542 |
|---|---|
| Board-Side Pitch | 1.27 mm |
| Board-Side Pitch | 0.05 in |
| Cable Pitch [custom] | 0.64 mm |
| Cable Pitch [custom] | 0.025 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.12 | |
| 16 | $ 5.53 | |||
| 32 | $ 5.22 | |||
| 48 | $ 5.10 | |||
| 80 | $ 4.84 | |||
| 240 | $ 4.33 | |||
| 448 | $ 4.08 | |||
| 960 | $ 3.57 | |||
| 2400 | $ 3.39 | |||
Description
General part information
M50-380 Series
50 Position Ribbon Cable, DIP Header Connector IDC 30 AWG Through Hole
