SSR21NVS-M10345

Active

KEMET

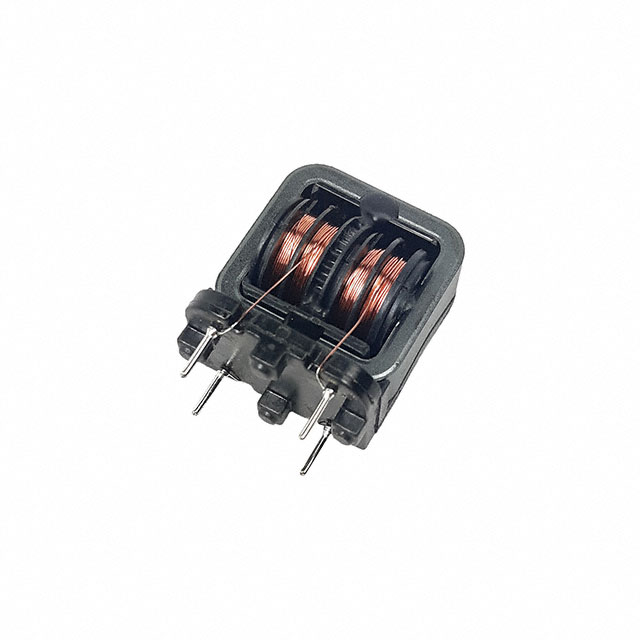

CMC 34.5MH 1A 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0047_SSR21NVS-M_NHS-M.pdf Datasheet +1

SSR21NVS-M10345

Active

KEMET

CMC 34.5MH 1A 2LN TH

Deep-Dive with AI

DocumentsKEM_LF0047_SSR21NVS-M_NHS-M.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSR21NVS-M10345

Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max) [Max]	510 mOhm
Height (Max)	27 mm
Height (Max) [Max]	1.063 in
Inductance @ Frequency	34.5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.866 in
Size / Dimension [y]	16 mm
Size / Dimension [y]	0.63 in
Voltage Rating - AC	250 V

SSR21NV Series

Part	Height (Max) [Max]	Height (Max)	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Lines	Inductance @ Frequency	Mounting Type	DC Resistance (DCR) (Max)
KEMET SSR21NVS-10160	1.063 in	27 mm	4 Lead	Vertical	290 mOhm	1 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	10 kHz 16 mH	Through Hole
KEMET SSR21NVS-12135	1.063 in	27 mm	4 Lead	Vertical	240 mOhm	1.2 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	13.5 mH	Through Hole
KEMET SSR21NV-20064	1.063 in	27 mm	4 Lead	Vertical	90 mOhm	2 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	6.4 mH	Through Hole
KEMET SSR21NVS-M10345	1.063 in	27 mm	4 Lead	Vertical	510 mOhm	1 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	34.5 mH	Through Hole
KEMET SSR21NVS-20034	1.063 in	27 mm	4 Lead	Vertical	70 mOhm	2 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	3.4 mH	Through Hole
KEMET SSR21NV-M30064	1.063 in	27 mm	4 Lead	Vertical	80 mOhm	3 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	6.4 mH	Through Hole
KEMET SSR21NVS-08235	1.063 in	27 mm	4 Lead	Vertical		800 mA	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	23.5 mH	Through Hole	420 mOhm
KEMET SSR21NV-10250	1.063 in	27 mm	4 Lead	Vertical		1 A	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	25 mH	Through Hole	360 mOhm
KEMET SSR21NV-M041500	1.063 in	27 mm	4 Lead	Vertical	2 Ohm	400 mA	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	150 mH	Through Hole
KEMET SSR21NVS-031590	1.063 in	27 mm	4 Lead	Vertical	2.85 Ohm	300 mA	250 V	120 °C	-25 °C	22 mm	16 mm	0.63 in	0.866 in	2	10 kHz 159 mH	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		90	$ 1.15

Description

General part information

SSR21NV Series

34.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 510mOhm

Documents

Technical documentation and resources

KEM_LF0047_SSR21NVS-M_NHS-M.pdf

Datasheet

SSR21NVS-M10345 Spec

Datasheet
