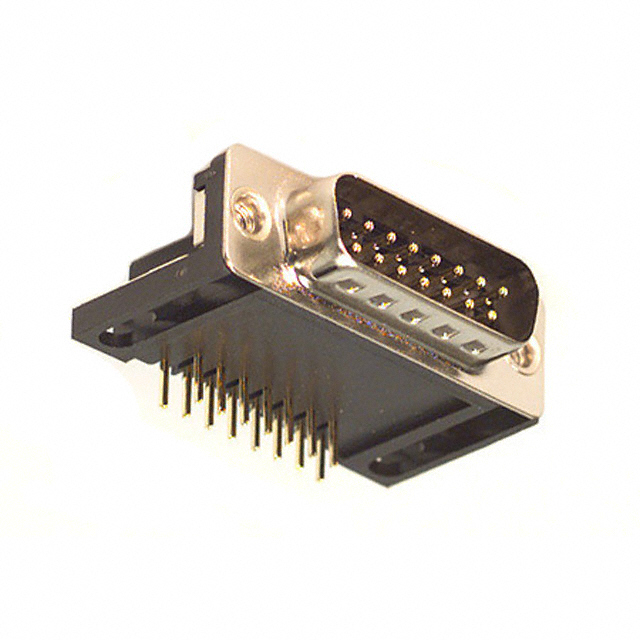

183-015-113R171
ActiveMH Connectors
CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
183-015-113R171
ActiveMH Connectors
CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 183-015-113R171 |
|---|---|
| Backset Spacing | 0.59 " |
| Backset Spacing | 14.99 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents, Ground Strap |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
183-015 Series
| Part | Contact Finish Thickness | Current Rating (Amps) | Connector Type | Termination | Features | Shell Size, Connector Layout | Number of Rows | Material Flammability Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Backset Spacing | Backset Spacing | Mounting Type | Connector Style | Contact Type | Flange Feature | Color | Contact Material | Dielectric Material | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Flash | 5 A | Male Pins Plug | Solder | Board Lock Grounding Indents | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Female Screwlock (4-40) Mating Side | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel |
MH Connectors | Flash | 5 A | Male Pins Plug | Solder | Ground Strap Grounding Indents | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel |
MH Connectors | Flash | 5 A | Male Pins Plug | Solder | Grounding Indents | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Female Screwlock (4-40) Mating Side | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel |
MH Connectors | Flash | 5 A | Receptacle Female Sockets | Solder | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Polyester Glass Filled | |||
MH Connectors | Flash | 5 A | Receptacle Female Sockets | Solder | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel | |
MH Connectors | Flash | 5 A | Receptacle Female Sockets | Solder | Ground Strap | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel |
MH Connectors | Flash | 5 A | Male Pins Plug | Solder | Board Lock Grounding Indents | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Female Screwlock (4-40) Mating Side | Black | Polyester Glass Filled | ||
MH Connectors | Flash | 5 A | Male Pins Plug | Solder | Board Lock Grounding Indents | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Polyester Glass Filled | ||
MH Connectors | Flash | 5 A | Receptacle Female Sockets | Solder | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Brass | Polyamide (PA9T) Nylon 9T | Nickel Plated Steel | |
MH Connectors | Flash | 5 A | Receptacle Female Sockets | Solder | Ground Strap | 2 | 2 | UL94 V-0 | 15 | 105 ░C | -55 °C | Gold | 0.59 " | 14.99 mm | Panel Mount Right Angle Through Hole | D-Sub | Signal | Housing/Shell (4-40) | Black | Polyester Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
183-015 Series
15 Position D-Sub Plug, Male Pins Connector
