Q-2K03G000M007F

Active

Amphenol Custom Cable

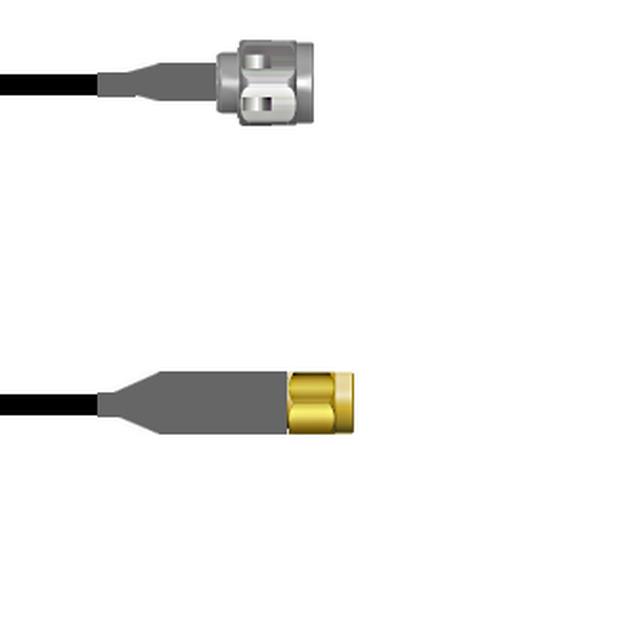

CBL ASSY SMA-NTYPE PLUG-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2K03G000M007F

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2K03G000M007F

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2K03G0 Series

Part	2nd Connector	1st Contact Gender	Color	1st Connector	Style	Frequency - Max [Max]	Cable Impedance	Length	Length	Overall Impedance	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	Connector Impedance	Features	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2K03G000M0.5M	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	50 cm	19.69 "	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded
Amphenol Custom Cable Q-2K03G000M018i	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms			50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2K03G000M.75M	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	750 mm	29.53 "	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded
Amphenol Custom Cable Q-2K03G000M001M	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	1 m	39.4 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			3.3 ft
Amphenol Custom Cable Q-2K03G000M007F	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	2.1 m	84 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			7 ft
Amphenol Custom Cable Q-2K03G000M004F	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	1200 mm	48 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			4 ft
Amphenol Custom Cable Q-2K03G000M108i	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	2.7 m	108 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			9 ft
Amphenol Custom Cable Q-2K03G000M072i	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	1.8 m	72 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			6 ft
Amphenol Custom Cable Q-2K03G000M060i	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	1.5 m	5 '	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded			5 ft
Amphenol Custom Cable Q-2K03G000M036i	N-Type Plug	Male	Black	SMA Plug	SMA to N-Type	6000 MHz	50 Ohms	91.44 cm	36 in	50 Ohms	LMR 240	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 138.58
		25	$ 135.89
		50	$ 133.21
		100	$ 130.52
		250	$ 127.83

Description

General part information

Q-2K03G0 Series

Cable Assembly Coaxial SMA to N-Type LMR 240 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
