CS00119AM-13-18S-61.250000E

Active

SiTime

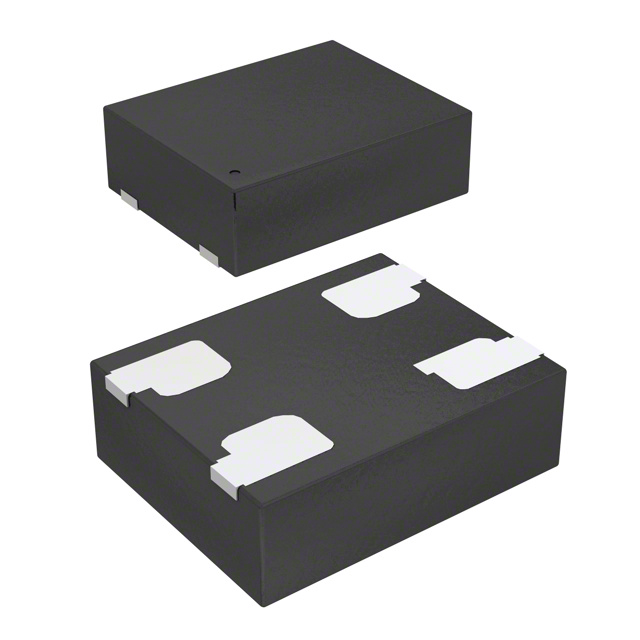

MEMS OSC XO 61.2500MHZ LVCMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CS00119AM-13-18S-61.250000E

Active

SiTime

MEMS OSC XO 61.2500MHZ LVCMOS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.75
	Digi-Reel®	1	$ 4.75
	Tape & Reel (TR)	1000	$ 3.20

Description

General part information

CS00119 Series

61.25 MHz XO (Standard) LVCMOS Oscillator 1.8V Standby (Power Down) 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CS00119AM-13-18S-61.250000E	CS00119 Series

Base Resonator	MEMS	MEMS
Current - Supply (Max) [Max]	7 mA	7 mA
Frequency	61.25 MHz	25 - 145 MHz
Frequency Stability	50 ppm	20 - 50 ppm
Function	Standby (Power Down)	Enable/Disable, Standby (Power Down)
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Output	LVCMOS	LVCMOS
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Ratings	AEC-Q100	AEC-Q100
Size / Dimension [x]	0.098 "	0.098 "
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Type	XO (Standard)	XO (Standard)
Voltage - Supply	1.8 V	1.8 V

CS00119 Series

MEMS OSC XO 25.0000MHZ LVCMOS

Part	Ratings	Base Resonator	Mounting Type	Current - Supply (Max) [Max]	Function	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Voltage - Supply	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Type
SiTime CS00119AA-11-18ED25.000000G	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	25 MHz	1.8 V	20 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-11D18ED26.000000E	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	26 MHz	1.8 V	20 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-13-18E-72.500000E	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	72.5 MHz	1.8 V	50 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-13-18S-60.625000E	AEC-Q100	MEMS	Surface Mount	7 mA	Standby (Power Down)	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	60.625 MHz	1.8 V	50 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-11-18ED25.000000E	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	25 MHz	1.8 V	20 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-13-18E-145.00000E	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	145 MHz	1.8 V	50 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AA-13-18E-144.00000E	AEC-Q100	MEMS	Surface Mount	7 mA	Enable/Disable	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	144 MHz	1.8 V	50 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
SiTime CS00119AM-13-18S-61.250000E	AEC-Q100	MEMS	Surface Mount	7 mA	Standby (Power Down)	LVCMOS	0.8 mm	0.031 "	125 °C	-55 °C	61.25 MHz	1.8 V	50 ppm	0.098 "	2 mm	2.5 mm	0.079 in	4-SMD, No Lead	XO (Standard)
