3344-38

Active

3M (TC)

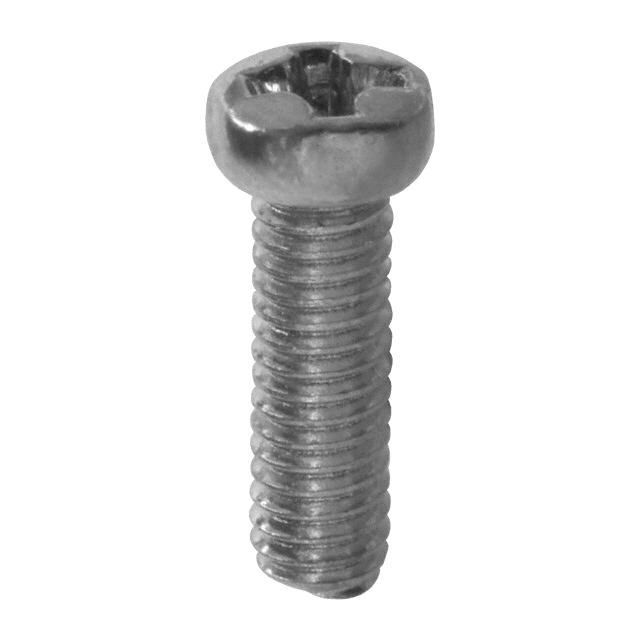

3M I/O CONNECTOR MOUNTING OPTIONS AND HARDWARE, 3344-38 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

3M I/O CONNECTOR MOUNTING OPTIONS AND HARDWARE, 3344-38 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	3344-38

Accessory Type	Board Lock Screw (Slotted)
For Use With/Related Products	MDR, D-Sub Connectors
Length - Below Head [x]	7.87 mm
Length - Below Head [x]	0.31 in
Thread Size	M2.5

Part	Length - Below Head [custom]	Length - Below Head [custom]	Accessory Type	For Use With/Related Products	Thread Size	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head
3M (TC) 3344-44	9.53 mm	0.375 in	Board Lock Screw (Slotted)	D-Sub Connectors MDR	4-40	9.53 mm	0.375 in
3M (TC) 3344-38			Board Lock Screw (Slotted)	D-Sub Connectors MDR	M2.5			7.87 mm	0.31 in
3M (TC) 3344-3			Board Lock Screw (Slotted)	D-Sub Connectors MDR	M2.5	6 mm	0.236 in			6 mm	0.236 in
3M (TC) 3344-4			Board Lock Screw (Slotted)	D-Sub Connectors MDR	4-40					6.35 mm	0.25 in	0.25 "	6.35 mm
