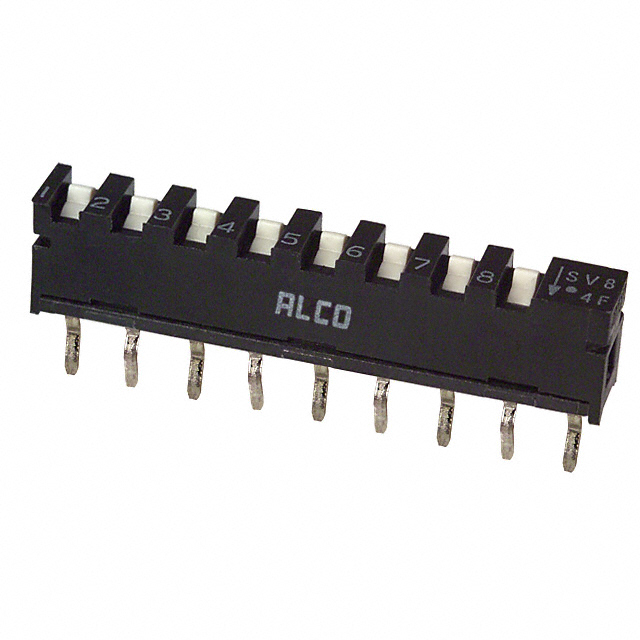

SSV08

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Termination Style	Length	Length	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Actuator Type	Body Material	Mechanical Life	Circuit	Features	Actuator Level	Electrical Life	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection SSV04	Through Hole	0.1 in	Full	2.54 mm	PC Pin	0.498 in	12.65 mm	5 mm	0.197 in	20 VAC/DC	Slide (Standard)	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	Process Sealed	Flush Recessed	1000 Cycles	4	-30 ░C	85 °C	Gold	Beryllium Copper
TE Connectivity Raychem Cable Protection SSV10	Through Hole	0.1 in	Full	2.54 mm	PC Pin			5 mm	0.197 in	20 VAC/DC	Slide (Standard)	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	Process Sealed	Flush Recessed	1000 Cycles	10	-30 ░C	85 °C	Gold	Beryllium Copper	1.098 in	27.89 mm
TE Connectivity Raychem Cable Protection SSV08	Through Hole	0.1 in	Full	2.54 mm	PC Pin			5 mm	0.197 in	20 VAC/DC	Slide (Standard)	Polyphenylene Sulfide (PPS)	1000 Cycles	SPST	Process Sealed	Flush Recessed	1000 Cycles	8	-30 ░C	85 °C	Gold	Beryllium Copper	0.898 in	22.82 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 0.4VA 20VAC/DC

Technical documentation and resources

No documents available
