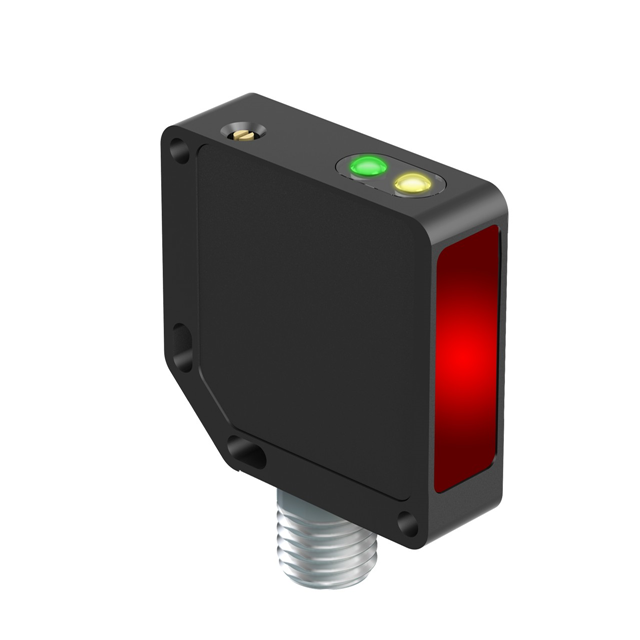

R55FPGQ

Active

BANNER ENGINEERING

R55 COLOR MARK: PLASTIC FIBER W/ GREEN LED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

R55 COLOR MARK: PLASTIC FIBER W/ GREEN LED

Technical Specifications

Parameters and characteristics for this part

Specification	R55FPGQ

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Blue LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	500 µs
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Sensing Method	Adjustment Type	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Connection Method	Output Configuration
BANNER ENGINEERING R55FPGQ	Blue LED	Fiber Optic	Adjustable	NEMA 6P IEC IP67	30 VDC	10 VDC	500 µs	55 °C	-10 °C	Connector	NPN/PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 256.00
Newark	Each	1	$ 262.00

General part information

Fiber Optic Optical Sensor NPN/PNP
