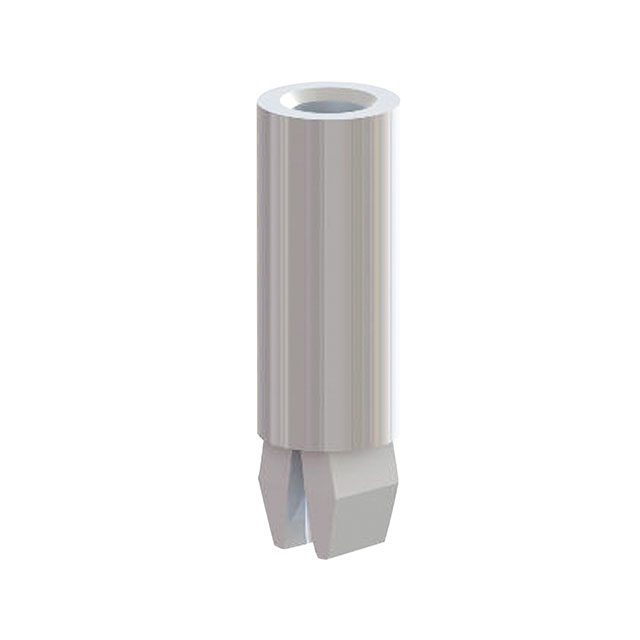

MSNE-3-01

Active

Essentra Access Solutions

STANDOFF NUT 4AB SCREW 3/16"

Search across all available documentation for this part.

Active

Essentra Access Solutions

STANDOFF NUT 4AB SCREW 3/16"

Technical Specifications

Parameters and characteristics for this part

Part	Holding Type	Mounting Type	Mounting Hole Diameter	Mounting Hole Diameter	Between Board Height [z]	Between Board Height [z]	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Length - Overall [x]	Material	Between Board Height	Between Board Height	Between Board Height	Length - Overall	Length - Overall
Essentra Access Solutions MSNE-8M-01	Screw Mount	Snap Lock	0.169 in	4.3 mm	0.315 in	8 mm	0.063 in	1.6 mm	0.531 "	13.5 mm	Nylon
Essentra Access Solutions MSNE-8-01	Screw Mount	Snap Lock	0.169 in	4.3 mm			0.063 in	1.6 mm			Nylon	0.5 in	12.7 mm	0.5 in	0.717 in	18.2 mm
Essentra Access Solutions MSNE-3-01	Screw Mount	Snap Lock	0.169 in	4.3 mm			0.063 in	1.6 mm	0.404 "	10.25 mm	Nylon	0.188 "	4.78 mm	0.1875 "
Essentra Access Solutions MSNE-12M-01	Screw Mount	Snap Lock	0.169 in	4.3 mm			0.063 in	1.6 mm	0.689 in	17.5 mm	Nylon	0.472 in	12 mm
Essentra Access Solutions MSNE-6M-01	Screw Mount	Snap Lock	0.169 in	4.3 mm			0.063 in	1.6 mm	0.453 in	11.5 mm	Nylon	0.236 in	6 mm
Essentra Access Solutions MSNE-10M-01	Screw Mount	Snap Lock	0.169 in	4.3 mm			0.063 in	1.6 mm	0.61 in	15.5 mm	Nylon	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Screw Mount / Snap Lock Nylon 0.188" (4.78mm) 3/16"
