3-794636-2

Active

TE Connectivity AMP Connectors

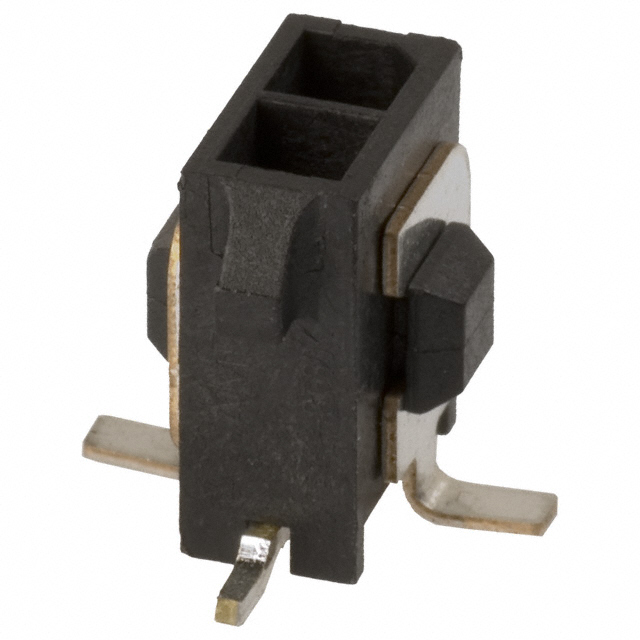

CONN HEADER SMD 2POS

Deep-Dive with AI

Search across all available documentation for this part.

3-794636-2

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 2POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.43
		10	$ 1.28
		100	$ 1.15
	Digi-Reel®	1	$ 1.43
		10	$ 1.28
		100	$ 1.15
	Tape & Reel (TR)	250	$ 1.15
		500	$ 1.14

Description

General part information

794636 Series

Connector Header Surface Mount 2 position

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794636-2	794636 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	2	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	-	0.118 in
Pitch - Mating	-	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794636 Series

CONN HEADER SMD 4POS 3MM

Part	Fastening Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Termination	Insulation Color	Contact Shape	Voltage Rating	Material Flammability Rating	Style	Row Spacing - Mating	Row Spacing - Mating	Applications	Insulation Material	Connector Type	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 3-794636-4	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	4	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 5-794636-2	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	22 positions	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 3-794636-2	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin			Brass	Surface Mount	2	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 4-794636-0	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	10	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 4-794636-8	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	18	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 4-794636-2	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	12	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 3-794636-6	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	6	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin
TE Connectivity AMP Connectors 2-794636-4	Locking Ramp	Tin-Lead	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	24	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin	Tin-Lead
TE Connectivity AMP Connectors 4-794636-6	Locking Ramp	Tin	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount		2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin		16
TE Connectivity AMP Connectors 2-794636-2	Locking Ramp	Tin-Lead	-40 °C	105 ░C	Solder Retention	Male Pin	0.118 in	3 mm	Brass	Surface Mount	22 positions	2.54 çm	100 çin	2	Varies by Wire Gauge	9.25 mm	0.364 in	Solder	Black	Square	250 VDC	UL94 V-0	Board to Cable/Wire	3 mm	0.118 in	General Purpose	Nylon, Polyamide (PA)	Header	All	Shrouded - 4 Wall	2.54 µm	100 µin	Tin-Lead
