4-794636-8
ActiveTE Connectivity AMP Connectors

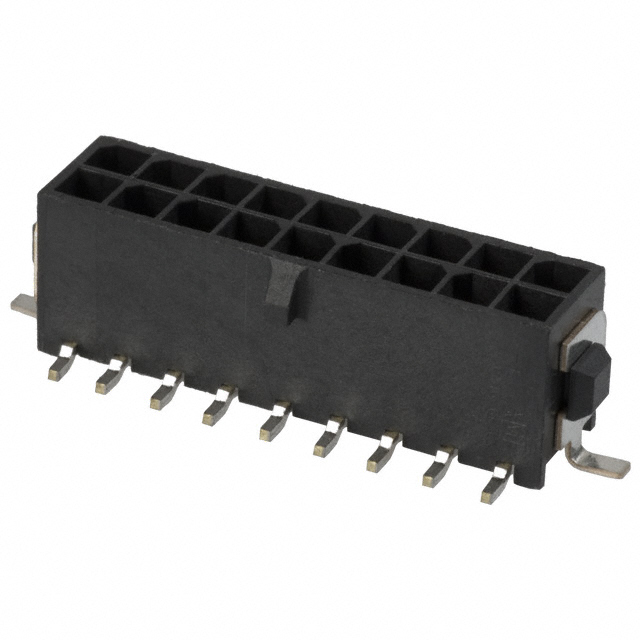

CONN HEADER SMD 18POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794636-8
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 18POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794636-8 | 794636 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Solder Retention | Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 18 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794636 Series
CONN HEADER SMD 4POS 3MM
| Part | Fastening Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Type | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Current Rating (Amps) | Insulation Height | Insulation Height | Termination | Insulation Color | Contact Shape | Voltage Rating | Material Flammability Rating | Style | Row Spacing - Mating | Row Spacing - Mating | Applications | Insulation Material | Connector Type | Number of Positions Loaded | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-794636-4 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 4 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 5-794636-2 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 22 positions | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 3-794636-2 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | Brass | Surface Mount | 2 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||||
TE Connectivity AMP Connectors 4-794636-0 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 10 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 4-794636-8 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 18 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 4-794636-2 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 12 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 3-794636-6 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 6 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | ||
TE Connectivity AMP Connectors 2-794636-4 | Locking Ramp | Tin-Lead | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 24 | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | Tin-Lead | |
TE Connectivity AMP Connectors 4-794636-6 | Locking Ramp | Tin | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | 16 | ||
TE Connectivity AMP Connectors 2-794636-2 | Locking Ramp | Tin-Lead | -40 °C | 105 ░C | Solder Retention | Male Pin | 0.118 in | 3 mm | Brass | Surface Mount | 22 positions | 2.54 çm | 100 çin | 2 | Varies by Wire Gauge | 9.25 mm | 0.364 in | Solder | Black | Square | 250 VDC | UL94 V-0 | Board to Cable/Wire | 3 mm | 0.118 in | General Purpose | Nylon, Polyamide (PA) | Header | All | Shrouded - 4 Wall | 2.54 µm | 100 µin | Tin-Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.47 | |
| 10 | $ 3.92 | |||
| Digi-Reel® | 1 | $ 4.47 | ||
| 10 | $ 3.92 | |||
| Tape & Reel (TR) | 175 | $ 3.51 | ||
| 350 | $ 3.49 | |||
| 525 | $ 3.26 | |||
| 1225 | $ 2.91 | |||
Description
General part information
794636 Series
Connector Header Surface Mount 18 position 0.118" (3.00mm)
