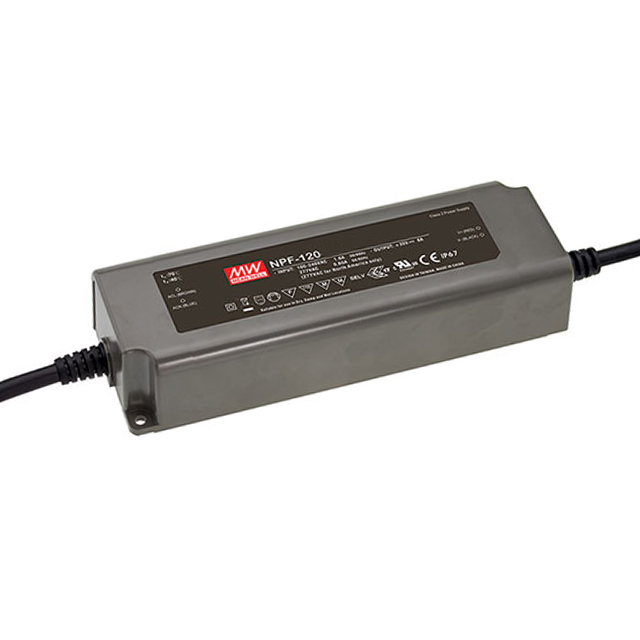

NPF-120-42

Active

MEAN WELL USA Inc.

LED DVR CC/CV ACDC 25.2-42V 2.9A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NPF-120-42

Active

MEAN WELL USA Inc.

LED DVR CC/CV ACDC 25.2-42V 2.9A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NPF-120-42

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	2.9 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	122 W
Ratings	IP67
Size / Dimension [x]	7.52 in
Size / Dimension [x]	191 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	37.5 mm
Size / Dimension [z]	1.48 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	42 V
Voltage - Output [Min]	25.2 V

NPF-120 Series

Part	Power (Watts)	Voltage - Input (Max) [Max]	Ratings	Topology	Current - Output (Max) [Max]	Termination Style	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Standard Number
MEAN WELL USA Inc. NPF-120D-30	120 W	305 VAC	IP67	AC DC Converter	4 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V
MEAN WELL USA Inc. NPF-120D-48	120 W	305 VAC	IP67	AC DC Converter	2.5 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	90 %	28.8 V	48 V
MEAN WELL USA Inc. NPF-120D-30BE	120 W	305 VAC	IP67	AC DC Converter	10 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	87.5 %	12 V	20 V	UL 8750
MEAN WELL USA Inc. NPF-120D-48BE	120 W	305 VAC	IP67	AC DC Converter	10 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	87.5 %	12 V	20 V	UL 8750
MEAN WELL USA Inc. NPF-120D-42	122 W	305 VAC	IP67	AC DC Converter	2.9 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V		25.2 V	42 V
MEAN WELL USA Inc. NPF-120D-54	124 W	305 VAC	IP67	AC DC Converter	2.3 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	90 %	32.4 V	54 V
MEAN WELL USA Inc. NPF-120-42	122 W	305 VAC	IP67	AC DC Converter	2.9 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C		1	Constant Current Voltage	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	90 %	25.2 V	42 V
MEAN WELL USA Inc. NPF-120D-36BE	120 W	305 VAC	IP67	AC DC Converter	10 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C	Analog PWM	1	Constant Current	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	87.5 %	12 V	20 V	UL 8750
MEAN WELL USA Inc. NPF-120-54	124 W	305 VAC	IP67	AC DC Converter	2.3 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C		1	Constant Current Voltage	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	90.5 %	32.4 V	54 V
MEAN WELL USA Inc. NPF-120-15	120 W	305 VAC	IP67	AC DC Converter	8 A	Wire Leads	OCP OTP OVP SCP	CB CCC CE cURus ENEC	90 °C	-40 °C		1	Constant Current Voltage	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	Chassis Mount	90 VAC	3750 V	89 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.78
		5	$ 48.25
		10	$ 46.43
		25	$ 44.11

Description

General part information

NPF-120 Series

2.9A 25.2 ~ 42V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
