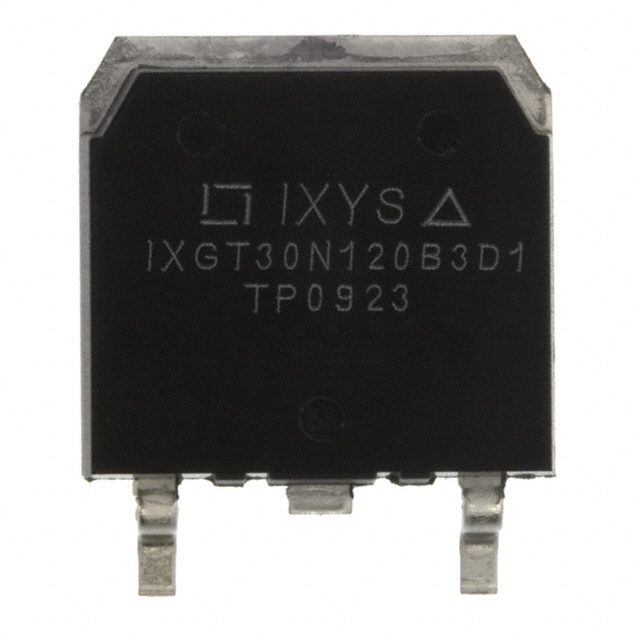

IXGT30N120B3D1

Active

IXYS

IGBT PT 1200V TO268AA

Search across all available documentation for this part.

Active

IXYS

IGBT PT 1200V TO268AA

Technical Specifications

Parameters and characteristics for this part

Specification	IXGT30N120B3D1

Current - Collector Pulsed (Icm)	150 A
Gate Charge	87 nC
IGBT Type	PT
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	300 W
Supplier Device Package	TO-268AA
Switching Energy	2.16 mJ, 3.47 mJ
Td (on/off) @ 25°C	127 ns, 16 ns
Test Condition	30 A, 5 Ohm, 15 V, 960 V
Vce(on) (Max) @ Vge, Ic	3.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Mounting Type	Reverse Recovery Time (trr)	Switching Energy	IGBT Type	Current - Collector Pulsed (Icm)	Gate Charge	Test Condition	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Power - Max [Max]	Td (on/off) @ 25°C
IXYS IXGT30N60B2D1	70 A	TO-268AA	Surface Mount	25 ns	320 µJ	PT	150 A	66 nC	5 Ohm 15 V 24 A 400 V	-55 °C	150 °C	600 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1.8 V	13 ns 110 ns
IXYS IXGT30N60B2	70 A	TO-268AA	Surface Mount		320 µJ	PT	150 A	66 nC	5 Ohm 15 V 24 A 400 V	-55 °C	150 °C	600 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1.8 V	13 ns 110 ns
IXYS IXGT30N120B3D1		TO-268AA	Surface Mount		2.16 mJ 3.47 mJ	PT	150 A	87 nC	5 Ohm 15 V 30 A 960 V	-55 °C	150 °C	1200 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	3.5 V		300 W	16 ns 127 ns
IXYS IXGT30N60C2	70 A	TO-268AA	Surface Mount		290 µJ	PT	150 A	70 nC	5 Ohm 15 V 24 A 400 V	-55 °C	150 °C	600 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	2.7 V	13 ns 70 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 12.43

General part information

IGBT PT 1200 V 300 W Surface Mount TO-268AA

Technical documentation and resources

No documents available
