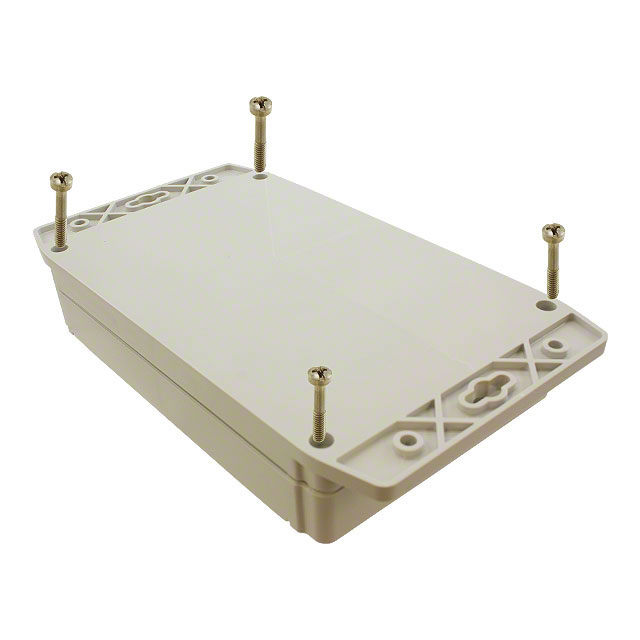

1555H2F17GY

Active

Hammond Manufacturing

BOX PC GRAY 7.09"L X 4.72"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1555FF42

1555H2F17GY

Active

Hammond Manufacturing

BOX PC GRAY 7.09"L X 4.72"W

Deep-Dive with AI

Documents1555FF42

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.02
		10	$ 22.07
		100	$ 19.87

Description

General part information

1555 Series

Box Polycarbonate Gray Cover Included 7.086" L x 4.723" W (179.98mm x 119.96mm) X 1.465" (37.21mm)

Documents

Technical documentation and resources

1555FF42

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1555H2F17GY	1555 Series

Area (L x W)	33.5 in˛	12.1 - 37.2 in˛
Area (L x W)	216 cm˛	78 - 384 cm˛
Area (L x W)	-	6.55 in²
Area (L x W)	-	42.3 cm²
Area (L x W)	-	59.5 in²
Color	Gray	Gray, Unpainted
Container Type	Box	Box, Enclosure
Design	Cover Included	Cover Included, Hand Held
Features	Watertight, Mounting Flange, PCB Supports	Watertight, Mounting Flange, PCB Supports, Card Guides
For Use With/Related Products	-	1555N2F Series, 1555NF, 1555CF, 1555C2F Series, 1555JF, 1555J2F Series, 1555F2F Series, 1555FF
Height	-	80 mm
Height	-	3.15 in
Height [z]	1.465 in	1.465 - 4.72 in
Height [z]	37.21 mm	37.21 - 119.89 mm
Material	Polycarbonate	Polycarbonate, ABS, Polycarbonate (PC)
Material Flammability Rating	UL94 5VA, UL94 V-0	UL94 5VA, UL94 V-0, UL94 HB, UL94-HB
Ratings	NEMA 13, NEMA 4, IP68, NEMA 4X, NEMA 12, UL-508	NEMA 13, NEMA 4, IP68, NEMA 4X, NEMA 12, UL-508, IP66, 4X, 12, 13, IP67, 6, 6P, NEMA 6P, NEMA 6, UL-508A
Screw Head Type	-	Pan Head
Size / Dimension	-	65.79 - 119.94 mm
Size / Dimension	-	0.057 - 0.064 "
Size / Dimension	-	1.45 - 1.63 mm
Size / Dimension [x]	7.086 in	2.559 - 9.449 in
Size / Dimension [x]	179.98 mm	65 - 240 mm
Size / Dimension [y]	119.96 mm	52 - 160 mm
Size / Dimension [y]	4.723 in	2.047 - 6.299 in
Thickness	0.157 in	0.118 - 0.16 in
Thickness	4 mm	3 - 4.06 mm
Thread Size	-	#4
Type	-	Panel, Inner
Weight	-	0.15 - 1.3 lb
Weight	-	68.04 - 589.7 g

1555 Series

BOX PC GRAY 6.3"L X 3.57"W

Part	Material Flammability Rating	Ratings	Container Type	Features	Design	Color	Thickness	Thickness	Height [z]	Height [z]	Material	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Height [diameter]	Height [diameter]
Hammond Manufacturing 1555J2F42GY	UL94 5VA, UL94 V-0	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL-508	Box	Mounting Flange, PCB Supports, Watertight	Cover Included	Gray	0.157 in	4 mm	2.441 in	62 mm	Polycarbonate	22.4 in˛	145 cm˛	159.94 mm	90.78 mm	3.574 in	6.297 in
Hammond Manufacturing 1555T2GY	UL94 5VA, UL94 V-0	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL-508	Box	Card Guides, PCB Supports, Watertight	Cover Included	Gray	0.118 in	3 mm	3.543 in	90 mm	Polycarbonate	33.5 in˛	216 cm˛					0.85 lb	385.55 g
Hammond Manufacturing 1555B2GY	UL94 5VA, UL94 V-0	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL-508	Box	Watertight	Cover Included	Gray	0.118 in	3 mm	1.575 in	40 mm	Polycarbonate			65 mm	65 mm	2.559 in	2.559 in	0.19 lb	86.18 g	6.55 in²	42.3 cm²
Hammond Manufacturing 1555PGY	UL94 HB	12, 13, 4X, IP66, NEMA 4	Box	Card Guides, PCB Supports, Watertight	Cover Included	Gray	0.118 in	3 mm			Polycarbonate	22.3 in²	144 cm²	120 mm	119.99 mm	4.724 in	4.724 "					80 mm	3.15 in
Hammond Manufacturing 1555UGY	UL94 HB	12, 13, 4X, IP66, NEMA 4	Box	Card Guides, PCB Supports, Watertight	Cover Included	Gray	0.118 in	3 mm	3.543 in	90 mm	Polycarbonate	37.2 in²	240 cm²	200 mm	119.99 mm	4.724 in	7.874 in
Hammond Manufacturing 1555G2GY	UL94 5VA, UL94 V-0	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL-508	Box	Card Guides, PCB Supports, Watertight	Cover Included	Gray	0.118 in	3 mm			Polycarbonate	16.7 in²	108 cm²	120 mm	89.99 mm	3.543 in	4.724 "	0.52 lb	235.87 g			80 mm	3.15 in
Hammond Manufacturing 1555NF17GY	UL94 HB	IP67, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	Box	Mounting Flange, PCB Supports, Watertight	Cover Included	Gray	0.157 in	4 mm	1.485 "	37.71 mm	Polycarbonate	22.3 in²	144 cm²	160.79 mm	120.79 mm	4.756 in	6.33 "
Hammond Manufacturing 1555CGY	UL94 HB	12, 13, 4X, IP66, NEMA 4	Box	Card Guides, PCB Supports, Watertight	Cover Included	Gray	0.118 in	3 mm	1.575 in	40 mm	Polycarbonate	12.1 in²	78 cm²	120 mm	64.9 mm	2.555 in	4.724 "
Hammond Manufacturing 1555YAGY	UL94-HB	IP66	Box		Cover Included, Hand Held	Gray	0.16 in	4.06 mm	4.72 in	119.89 mm	Polycarbonate
Hammond Manufacturing 1555FF17GY	UL94 HB	IP67, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	Box	Mounting Flange, PCB Supports, Watertight	Cover Included	Gray	0.157 in	4 mm	1.465 in	37.21 mm	Polycarbonate	16.9 in²	109 cm²	119.94 mm	90.78 mm	3.574 in	4.722 in
