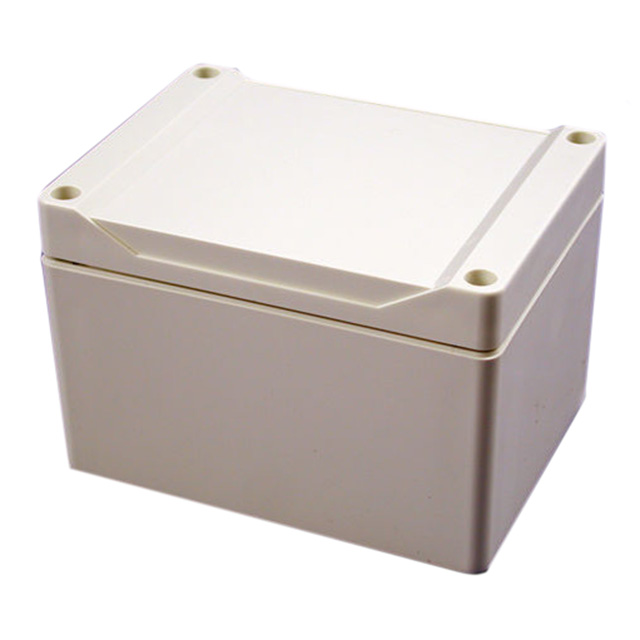

1555G2GY

Active

Hammond Manufacturing

BOX PC GRAY 4.72"L X 3.54"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1555G

1555G2GY

Active

Hammond Manufacturing

BOX PC GRAY 4.72"L X 3.54"W

Deep-Dive with AI

Documents1555G

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1555G2GY

Area (L x W)	108 cm²
Area (L x W)	16.7 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Card Guides, Watertight
Height [diameter]	80 mm
Height [diameter]	3.15 in
Material	Polycarbonate
Material Flammability Rating	UL94 5VA, UL94 V-0
Ratings	NEMA 13, NEMA 4, IP68, NEMA 4X, NEMA 12, UL-508
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	3.543 in
Size / Dimension [y]	89.99 mm
Thickness	3 mm
Thickness	0.118 in
Weight	0.52 lb
Weight	235.87 g

1555 Series

Part	Area (L x W)	Area (L x W)	Container Type	Features	Color	Design	Thickness	Thickness	Material	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Ratings	Weight	Weight	Height [diameter]	Height [diameter]
Hammond Manufacturing 1555NF42GY	144 cm²	22.3 in²	Box	Mounting Flange PCB Supports Watertight	Gray	Cover Included	0.157 in	4 mm	Polycarbonate	UL94 HB	4.723 in	4.723 in	119.96 mm	119.96 mm	2.441 in	62 mm	IP67 NEMA 12 NEMA 13 NEMA 4 NEMA 4X
Hammond Manufacturing 1555F2GY	108 cm²	16.7 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 5VA UL94 V-0	4.724 "	3.543 in	120 mm	89.99 mm	2.362 in	60 mm	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508	0.4 lb	181.44 g
Hammond Manufacturing 1555JGY	144 cm²	22.3 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.128 in	3.25 mm	Polycarbonate	UL94 HB	6.299 "	3.543 in	159.99 mm	89.99 mm	2.362 in	60 mm	12 13 4X IP66 NEMA 4
Hammond Manufacturing 1555G2GY	108 cm²	16.7 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 5VA UL94 V-0	4.724 "	3.543 in	120 mm	89.99 mm			IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508	0.52 lb	235.87 g	80 mm	3.15 in
Hammond Manufacturing 1555YAGY			Box		Gray	Cover Included Hand Held	0.16 in	4.06 mm	Polycarbonate	UL94-HB					4.72 in	119.89 mm	IP66
Hammond Manufacturing 1555D2GY	78 cm²	12.1 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 5VA UL94 V-0	4.724 "	2.559 in	120 mm	65 mm	2.362 in	60 mm	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508	0.15 lbs	68.04 g
Hammond Manufacturing 1555UGY	240 cm²	37.2 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 HB	7.874 in	4.724 in	200 mm	119.99 mm	3.543 in	90 mm	12 13 4X IP66 NEMA 4
Hammond Manufacturing 1555K2GY	144 cm²	22.3 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 5VA UL94 V-0	6.299 "	3.543 in	159.99 mm	89.99 mm	3.543 in	90 mm	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508
Hammond Manufacturing 1555EGY	81 cm²	12.6 in²	Box	Card Guides PCB Supports Watertight	Gray	Cover Included	0.118 in	3 mm	Polycarbonate	UL94 HB	3.543 "	3.543 in	89.99 mm	89.99 mm	2.362 in	60 mm	12 13 4X IP66 NEMA 4
Hammond Manufacturing 1555JF42GY	145 cm˛	22.4 in˛	Box	Mounting Flange PCB Supports Watertight	Gray	Cover Included	0.157 in	4 mm	Polycarbonate	UL94 HB	6.297 in	3.574 in	159.94 mm	90.78 mm	2.441 in	62 mm	IP67 NEMA 12 NEMA 13 NEMA 4 NEMA 4X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.85
		5	$ 21.51
		10	$ 20.16
		25	$ 18.82
		50	$ 18.48
		100	$ 18.15
		250	$ 17.88
		500	$ 17.48

Description

General part information

1555 Series

Box Polycarbonate Gray Cover Included 4.724" L x 3.543" W (120.00mm x 89.99mm) X 3.150" (80.00mm)

Documents

Technical documentation and resources

1555G

Datasheet
