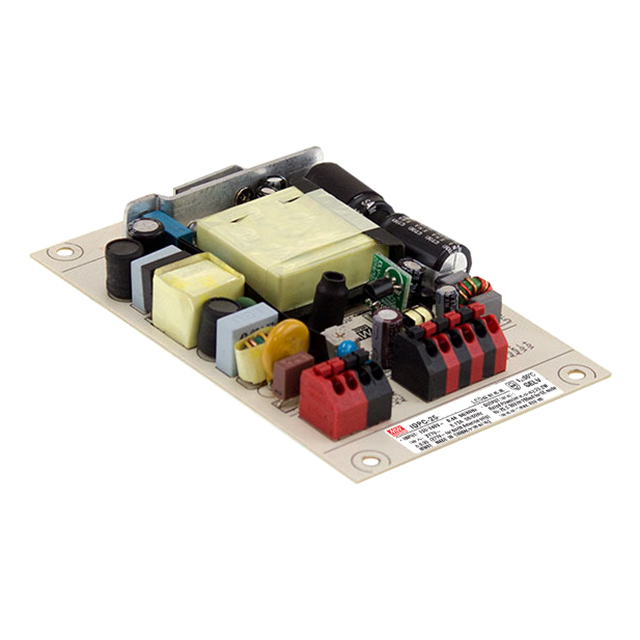

IDPC-25-700

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 25.2-36V 700MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 25.2-36V 700MA

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Termination Style	Mounting Type	Voltage - Input (Max) [Max]	Type	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Efficiency
MEAN WELL USA Inc. IDPC-25-350	CB CCC CE cURus ENEC	3750 V	49 V	70 V	90 VAC	0.79 in	4.51 in	20 mm	2.85 "	114.5 mm	72.5 mm	SCP	Terminal Block	Chassis Mount	295 VAC	Constant Current	25 W	350 mA	1	Analog PWM	50 °C	-20 C	AC DC Converter
MEAN WELL USA Inc. IDPC-25A-1050	CB CCC CE cURus ENEC	3750 V	16.8 V	24 V	90 VAC	0.79 in	4.51 in	20 mm	2.85 "	114.5 mm	72.5 mm	SCP	Terminal Block	Chassis Mount	295 VAC	Constant Current	25 W	1.05 A	1	Analog PWM	50 °C	-20 C	AC DC Converter	80 %
MEAN WELL USA Inc. IDPC-25A-500	CB CCC CE cURus ENEC	3750 V	35 V	50 V	90 VAC	0.79 in	4.51 in	20 mm	2.85 "	114.5 mm	72.5 mm	SCP	Terminal Block	Chassis Mount	295 VAC	Constant Current	25 W	500 mA	1	Analog PWM	50 °C	-20 C	AC DC Converter	81.5 %
MEAN WELL USA Inc. IDPC-25-700	CB CCC CE cURus ENEC	3750 V	25.2 V	36 V	90 VAC	0.79 in	4.51 in	20 mm	2.85 "	114.5 mm	72.5 mm	SCP	Terminal Block	Chassis Mount	295 VAC	Constant Current	25 W	700 mA	1	Analog PWM	50 °C	-20 C	AC DC Converter	81.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

700mA 25.2 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
