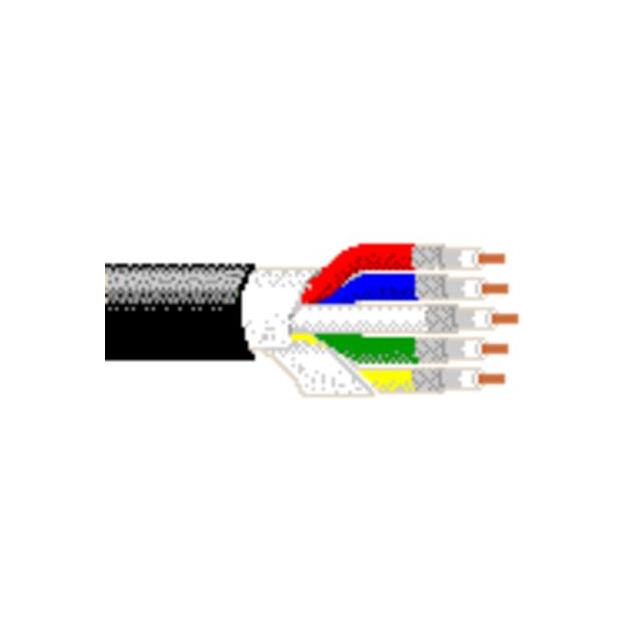

7712A B59500
ActiveBelden Inc.
5 #18 PE SH PVC FRTPE
Deep-Dive with AI
Search across all available documentation for this part.
7712A B59500
ActiveBelden Inc.
5 #18 PE SH PVC FRTPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7712A B59500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter [diameter] | 0.97 in |
| Jacket (Insulation) Diameter [diameter] | 24.64 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Black |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 5 (Coax) |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style CMR |
| Shield Coverage | 95 %, 100 % |
| Shield Material | Aluminum, Polyester, Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | Video |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 11.66 | |
Description
General part information
7712A Series
5 (Coax) Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 500.0' (152.4m)
